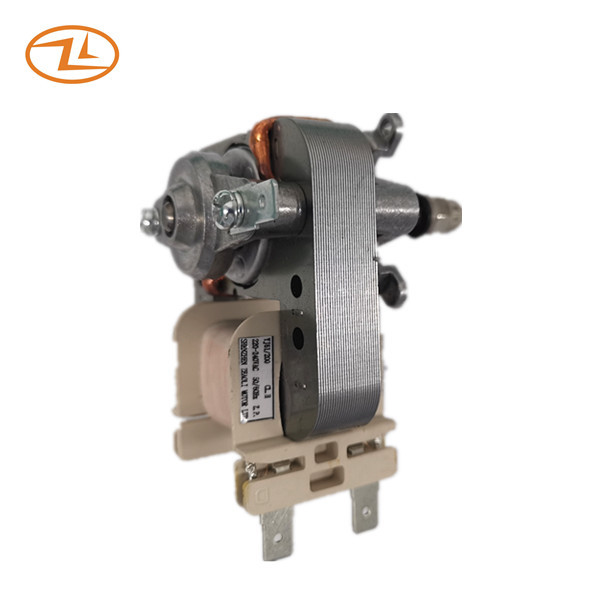

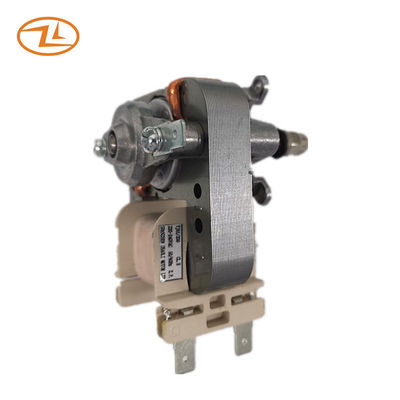

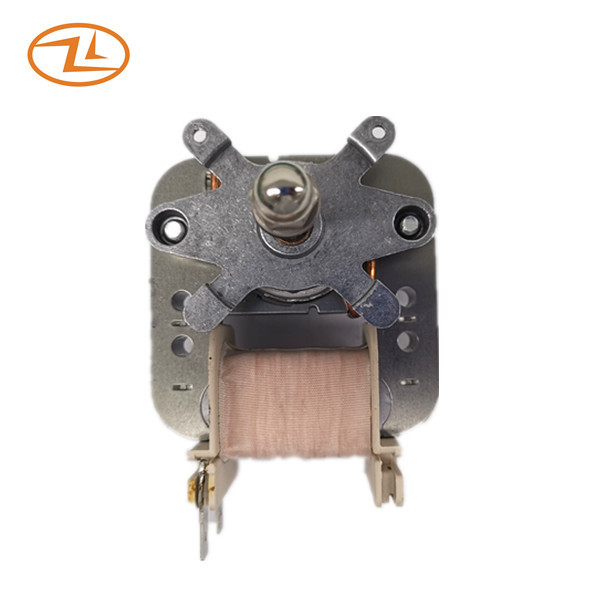

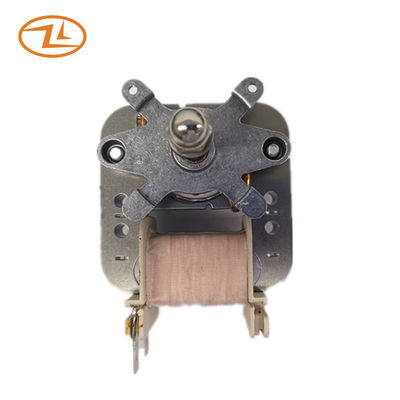

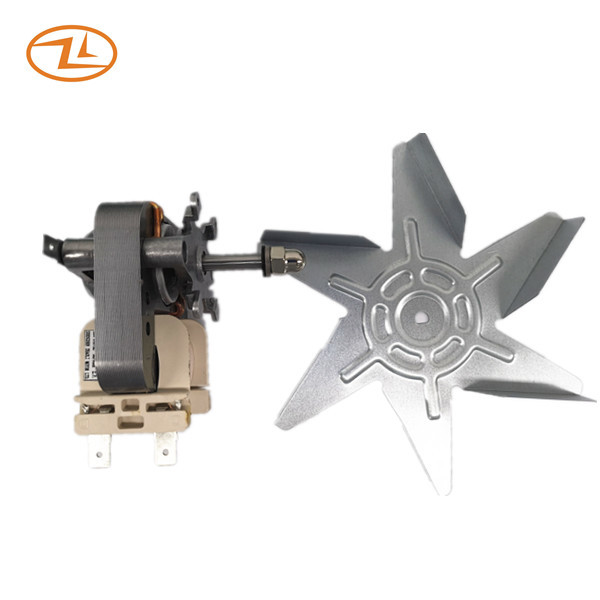

Small Oven Fan Motor Turbo Fan Motor For Built-In Oven 220-240V 50HZ CL.H
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input W |
Speed RPM |
|||
| YJ61-14 | 230 | 50 | 0.165 | 2560 | 0.175 | 25 | 1150 |
This kind of oven motor belongs to shaded pole motor.
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Drawing:
Application: Built-in oven / Stand oven
