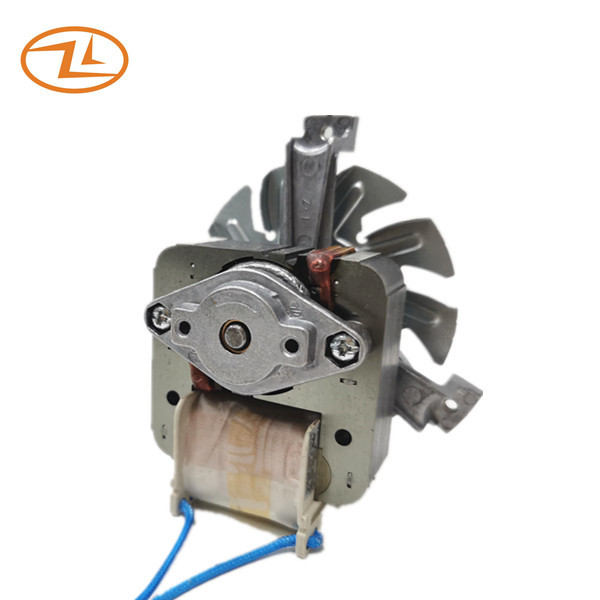

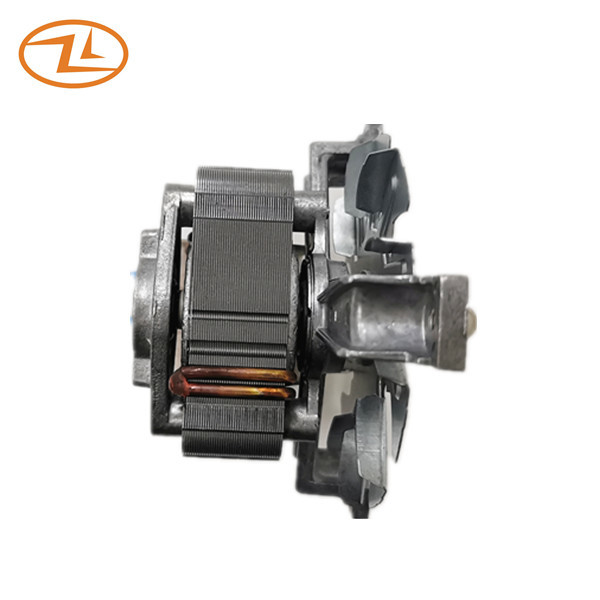

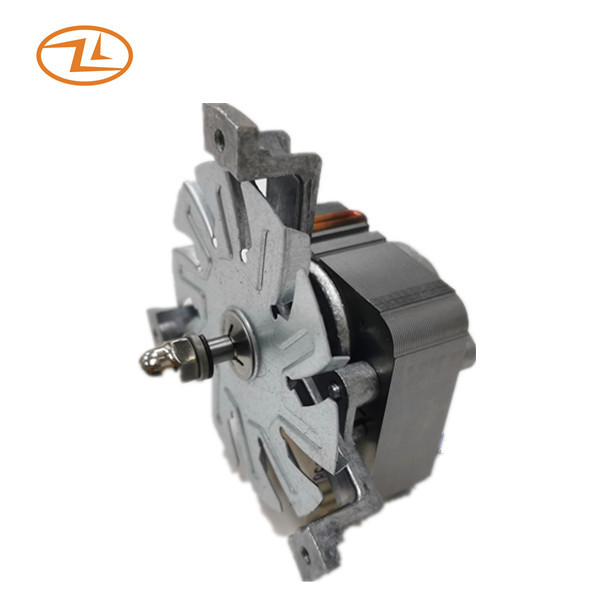

Shaded Pole Oven Fan Motor For Oven With Convection Toaster YJ62/200HB
This kind of oven motor is one type of shaded pole motor with flexible fitting dimensions and adjustable performance. Mainly it is applied in multi-functions convection ovens with toaster, deep fryer, dehydrator, roaster and so on.
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load | ||||
|
Current A |
Speed RPM |
Current A |
Input W |
Speed RPM |
|||
| YJ62/200HB | 120 | 60 | 0.380 | 3300 | <=0.80 | <=50 | 1800+/- 10% |
Drawing:
