Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller

2000
MOQ

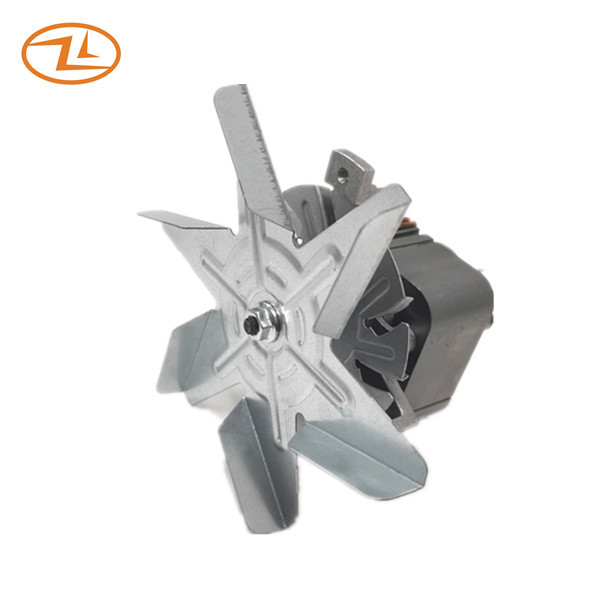

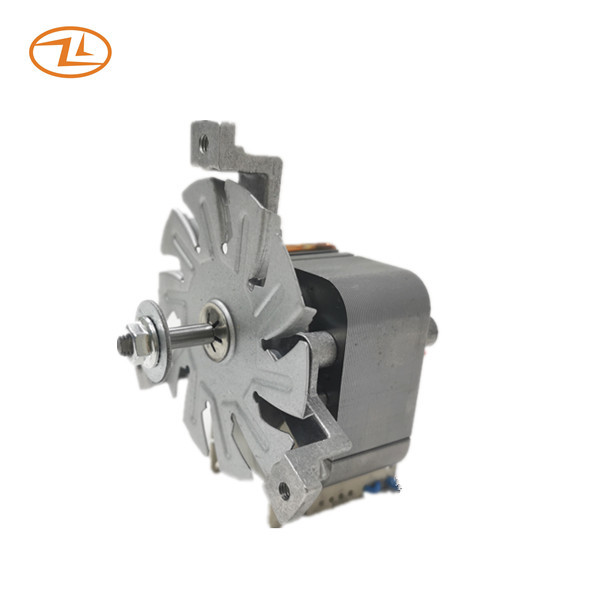

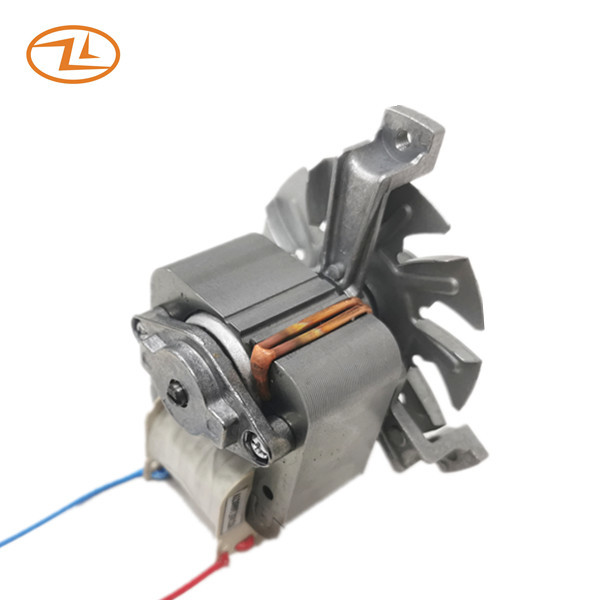

Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Toaster Oven Motor
Rated Voltage: 120V 60HZ
Stack Size: 62.5x60.5mm
Lamination Thickness: 30.5mm
Insulation Class: CL.H
Fan Blade: φ152mm
Bearing: Sleeve Bearing
Shaft: Customized
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protect Feature: Explosion-proof
Application: Toaster Oven/ Convection Oven
High Light:

60HZ 30.5mm Oven Fan Motors

,

30.5mm Oven Fan Motors

,

120V 30.5mm Oven Fan Motors

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, CCC, VDE, ROHS, REACH
Model Number: YJ62-30
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

Convection Oven Fan Motor Toaster Oven Motor YJ61/300L 120V 60HZ With Impeller



Specification:



Model



Rated Voltage/ Frequency

V/HZ

Free Load On Load

Current

A

Speed

RPM

Current A

Input

W

Speed

RPM

YJ61/300L 120 60 0.40 3200 0.85 68 3000+/- 150



Upon customers' need, the motor performance, shaft dimension, fitting dimension, structure(ball bearing or sleeve bearing) can be adjustable.



Drawing:



Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller 0



Application:

This kind of shaded pole motor is mainly applied in multi-functions convection ovens.

Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller 1
