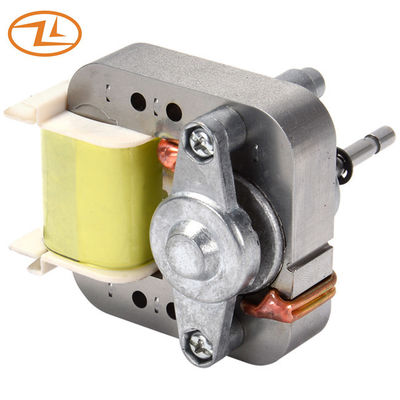

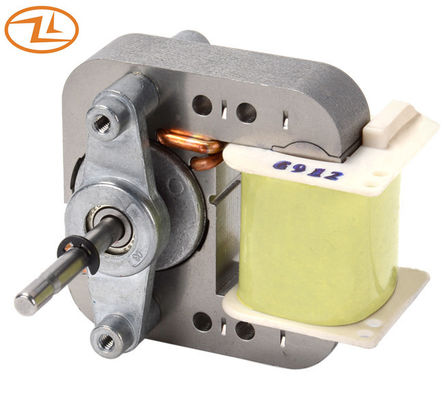

Shaded pole motor C-frame motor YJ61-16 120V 60HZ fan motor Ball bearing Sleeve bearing optional
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators,
Humidifiers, Water-pumps, Air-fresheners,Humidifiers.
Specification:
| Model |
Dimensions
|
Rated voltage V |
Rated frequency HZ |
Free load | On load | ||||||
| A | B |
Current A |
Speed RPM |
Current A |
Input power W |
Output power W |
Speed RPM |
Torque G.CM |
|||
| YJ61-8A | 8 | Φ3.17 | 220 | 50 | 0.14 | 2900 | 0.15 | 15 | 1.4 | 2230 | 63 |
| YJ61-10D | 10 | Φ4 | 220 | 50 | 0.1 | 2910 | 0.12 | 13 | 2.2 | 2200 | 100 |
| YJ61-12F | 12 | Φ5 | 220 | 50 | 0.17 | 2930 | 0.19 | 18 | 3.5 | 2310 | 150 |
| YJ61/200 | 13.5 | Φ5 | 120 | 60 | 0.28 | 3400 | 0.32 | 21 | 3 | 2200 | 140 |
| YJ61-20E | 30 | Φ6 | 220 | 50 | 0.35 | 2960 | 0.45 | 45 | 6 | 2350 | 260 |
| YJ61-40 | 40 | Φ6 | 220 | 50 | 0.6 | 2930 | 0.65 | 74 | 20 | 2500 | 800 |
