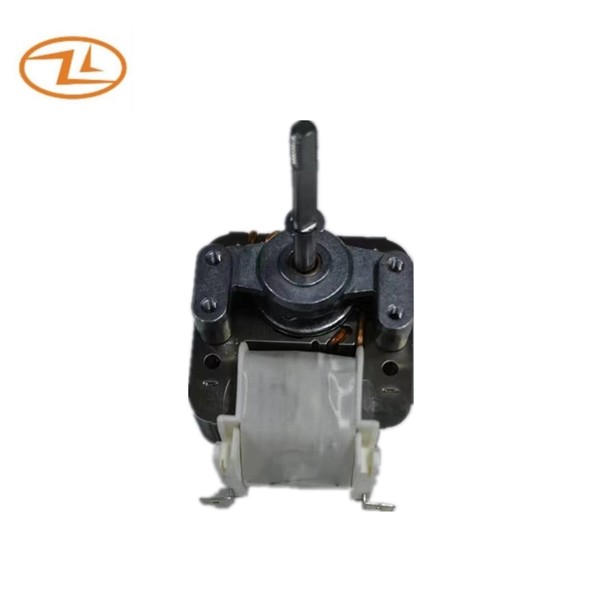

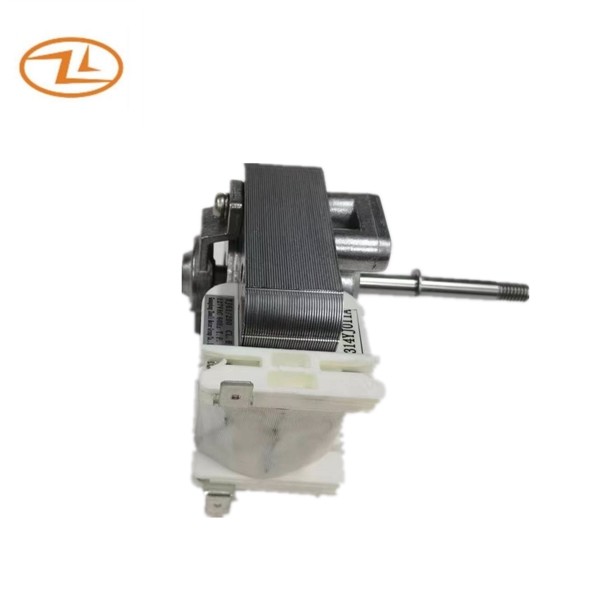

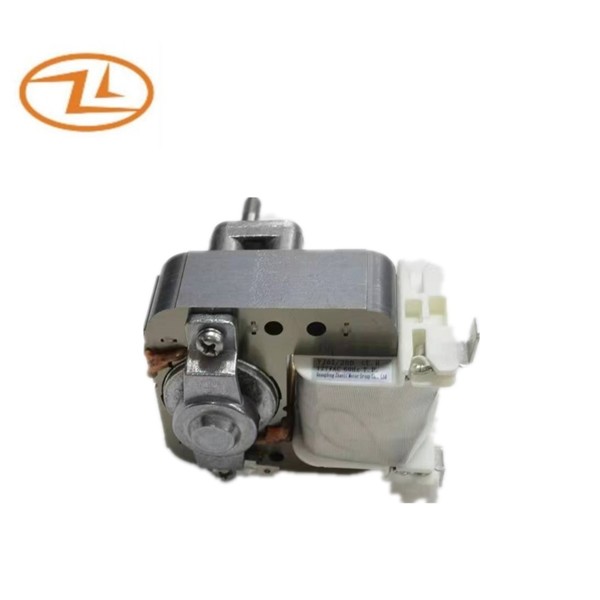

Kitchen Exhaust Fan 40W Shaded Pole Motor 120V Customized Printing
Air Fryer Oven Motor Kitchen Exhaust Fan Motor Shaded Pole Rotor And Stator Shaded Pole Fan Motors 120V 60HZ custom printed
When the single-phase alternating current is passed into the single-phase stator windings, a pulsating magnetic field will be generated in the stator which changes sinusoidal with time but does not move in space. The analysis shows that the alternating pulsating magnetic field can be decomposed into two rotating magnetic fields which turn opposite, so that the positive and negative torques are equal when the motor is at rest, the starting torque is zero, and the motor cannot start by itself.
Characteristics:
High performance,Reasonable structure design,Numerous choices,Considerable energy saving effect, Long life, Good quality and cheap price,Low defect rate,Simple structure.
Application:
Ovens, Microwave ovens, Air-conditioners,Humidifiers, Refrigerators, Washing machines, Fan heaters, Ventilators,
Water-pumps.
Specification:
| Model |
Rated Voltage/ Frequency V/HZ
|
On Load (fan blade) | ||||
| Start-up voltage V |
Current A
|
Input power W
|
Speed RPM
|
|||
| YJ61/200 | 120 | 60 | <85 | ≤0.52 | ≤40 | 2300±200 |
Drawing:
