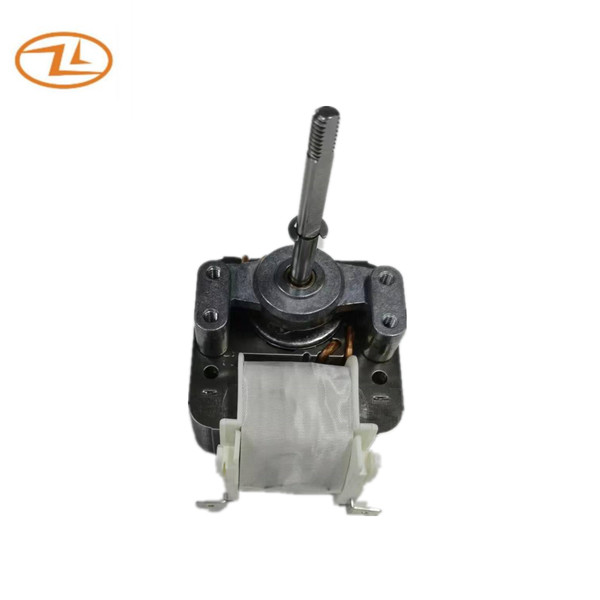

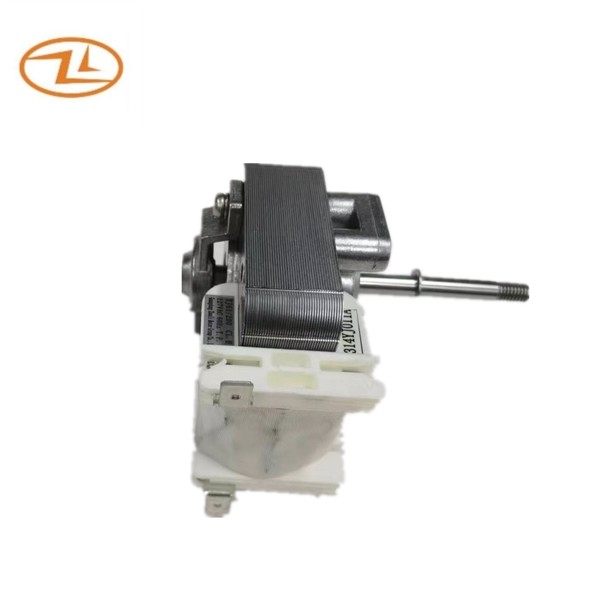

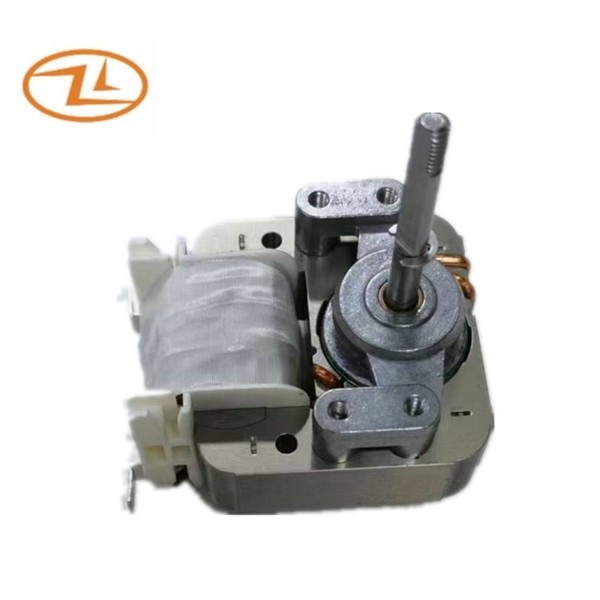

120V 60HZ Commercial Kitchen Hood Exhaust Fan Motor Single Phase
Air Fryer Oven Motor Kitchen Exhaust Fan Motor Shaded Pole Rotor And Stator Single Phase Ac Motor Shaded Pole 120V 60HZ custom printed
Two identical pulse magnetic fields are formed in time and space, so that a rotating magnetic field is generated in the air gap between the stator and the rotor. Under the action of the rotating magnetic field, the rotor of the motor generates induced current, and the current interacts with the rotating magnetic field to generate electromagnetic field torque, which makes the motor rotate.
Characteristics:
High performance,Reasonable structure design,Numerous choices,Considerable energy saving effect, Long life, Good quality and cheap price,Low defect rate,Simple structure.
Application:
Ovens, Microwave ovens, Air-conditioners,Humidifiers, Refrigerators, Washing machines, Fan heaters, Ventilators,
Water-pumps.
Specification:
| Model |
Rated Voltage/ Frequency V/HZ
|
On Load (fan blade) | ||||
| Start-up voltage V |
Current A
|
Input power W
|
Speed RPM
|
|||
| YJ61/200 | 120 | 60 | <85 | ≤0.52 | ≤40 | 2300±200 |
Drawing:
