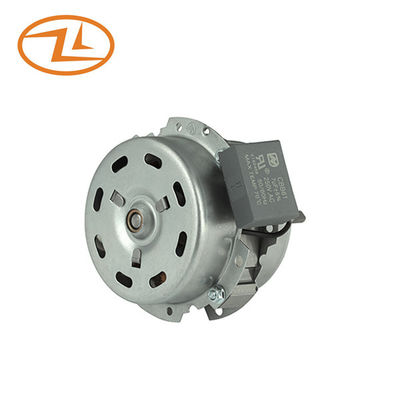

Capacitor Motor 78-18 for 10/12/14inch circulator fan, tower fan
Capacitor motor is mainly composed of stator, winding, rotor and bracket module. There are two windings for single-phase capacitor motor:
one is connected directly to the power supply and the other is conneced in series with a capacitor to generate a rotating magnetic field. The capacitors cause a phase shaft between the currents flowing through windings, whose axes are spatially displaced. Maxium toque is developed when the phase shift between the two currents is 90° and the amplitude of the currents is selected such that the rotating gield becomes circular.
Characteristics:
Low noise, stable operation, long life, no electromagnetic interference.
It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (12inch fan) | ||||
|
Current A
|
Input power W |
Current A |
Input power W |
Speed RPM |
|||
| 78-18 | 127 | 60 | 0.495 | 53.8 | 0.57 | 72 | 1500 |
| 0.31 | 32.5 | 0.456 | 54 | 1200 | |||
| 0.27 | 26.0 | 0.418 | 50 | 900 | |||
| 78-18 | 220 | 50 | 0.21 | 44.7 | 0.23 | 48 | 1150 |
| 0.14 | 30 | 0.185 | 39 | 850 | |||
| 0.11 | 23 | 0.16 | 33 | 550 |
|||
Drawing:
Application: Table fan, Tower fan, Circulator fan, Electric fan
