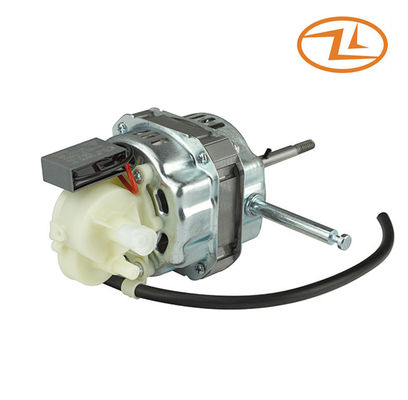

Capacitor Fan Motor 78-25 For 18inch 20inch Fan , Stand Fan
Capacitor motor is mainly composed of stator, winding, rotor and bracket module. There are two windings for single-phase capacitor motor:
one is connected directly to the power supply and the other is conneced in series with a capacitor to generate a rotating magnetic field. The capacitors cause a phase shaft between the currents flowing through windings, whose axes are spatially displaced. Maxium toque is developed when the phase shift between the two currents is 90° and the amplitude of the currents is selected such that the rotating gield becomes circular.
Characteristics:
Low noise, stable operation, long life, no electromagnetic interference.
It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (18inch fan) | ||||
|
Current A
|
Input power W |
Current A |
Input power W |
Speed RPM |
|||
| 78-25 | 127 | 60 | 0.50 | 55 | 0.71 | 89 | 1500 |
| 0.40 | 37 | 0.58 | 73 | 1100 | |||
| 0.36 | 29.5 | 0.451 | 64 | 800 | |||
| 78-25 | 220 | 50 | 0.19 | 37 | 0.25 | 55 | 1150 |
| 0.16 | 27.5 | 0.22 | 48 | 950 | |||
| 0.14 | 20.5 | 0.18 | 41 | 650 | |||
Drawing:
Application: Stand fan/Oscilating fan/Floor fan
