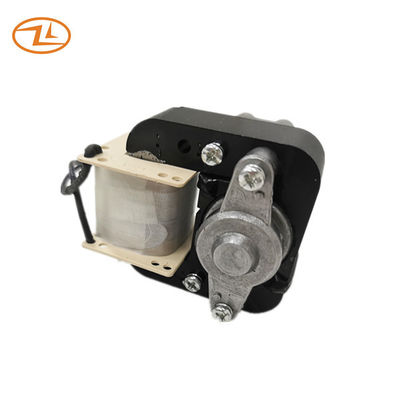

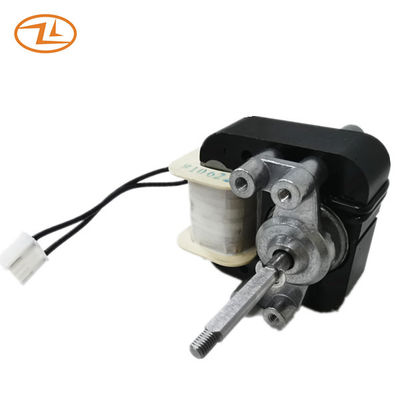

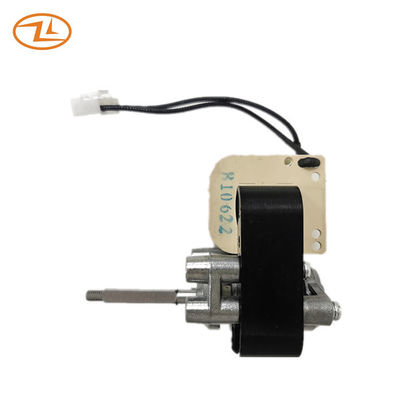

C-Frame Motor For Circulator Fan 120V 60HZ Different Speed Steps Rust-Proof
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece. Also it is called C-frame motor.
It is widely used because of:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 120 | 60 | 0.55+/-15% | 25+/-15% | 3300+/-10% | <100V | 0.60+/-15% | 32+/-15% | 3000+/-10% |
| 220 | 50 | 0.70+/-15% | 28+/-15% | 2700+/-10% | 198V | 0.74+/-15% | 35+/-15% | 2550+/-10% | |
Drawing:
Application: Mainly applied in circulator fan, dehumidifier, air purifier, humidifier this kind of seasonal appliances.
