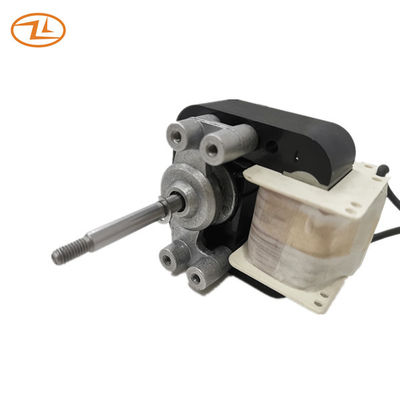

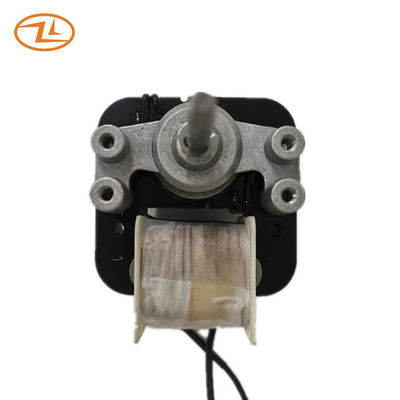

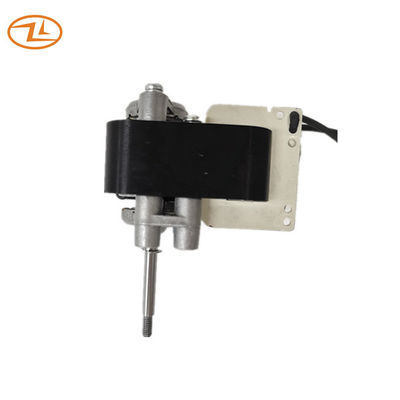

AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
YJ61/300 | 120 | 60 | 0.48+/-15% | 24+/-15% | 3300+/-10% | <90V | 0.78+/-15% | 44+/-15% | 2000+/-10% |
Drawing:
