AC220v 50hz Shaded Pole Motor Overload Protector For Dehumidifer

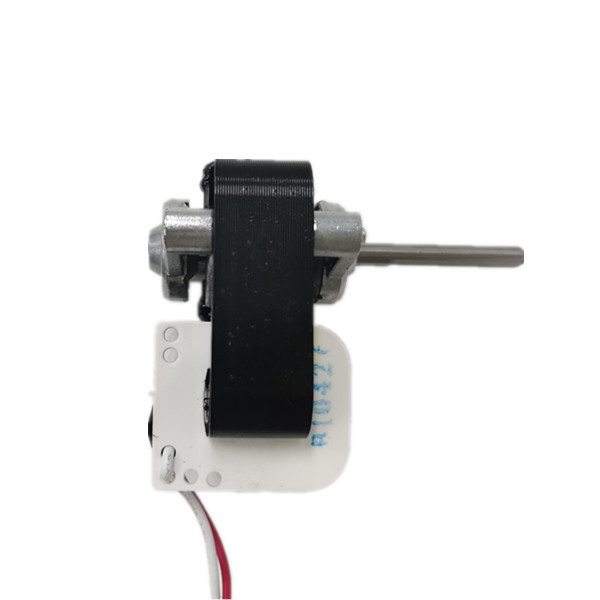

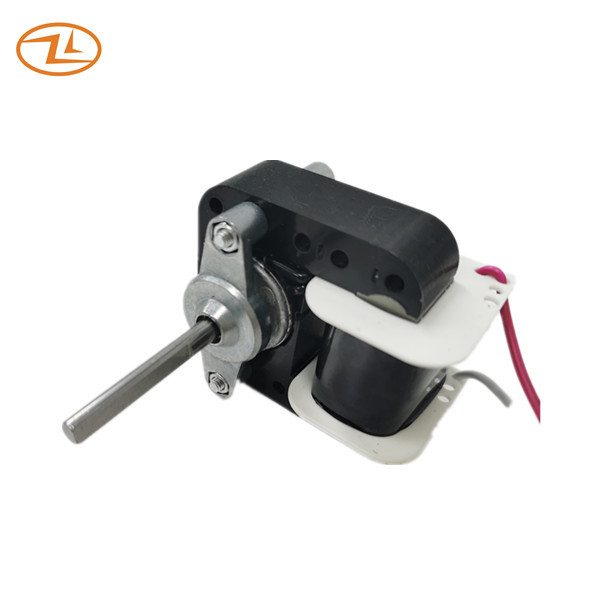

AC Shaded Pole Motor For Dehumidifer 220v 50hz CL.E With Thermal Protection Rust Proof
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
This motor is with 3 speed steps for home dehumidifer.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61/200 | 220 | 50 | 0.45+/-15% | 23+/-15% | 2700+/-10% | <198 | 0.52+/-15% | 30+/-15% | 2500+/-10% |
Drawing:
Application: dehumidifier, air purifier, circulator fan
