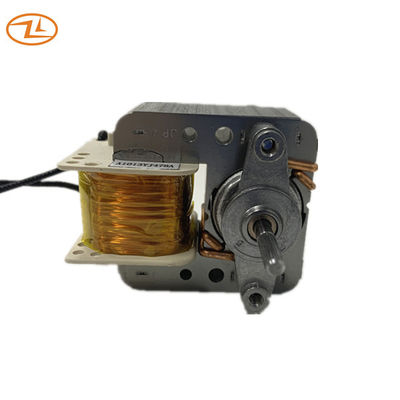

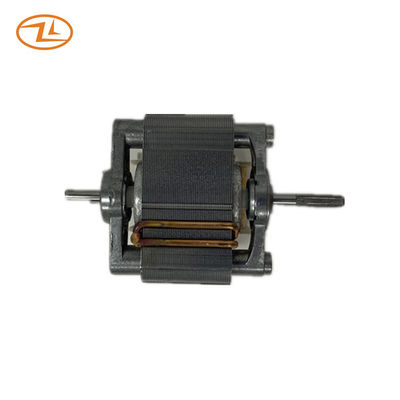

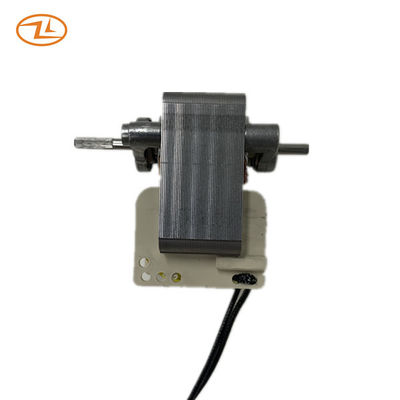

Shaded Pole Motor Small Motor For Hot Air Oven YJ48/300 230V 50HZ CL.H
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ48/300 | 230 | 50 | 0.21+/-15% | 25+/-15% | 2800+/-10% | <198 | 0.42+/-15% | 30+/-15% | 2200+/-10% |
Drawing:
Application: Oven, Mircowave oven, Air fryer
