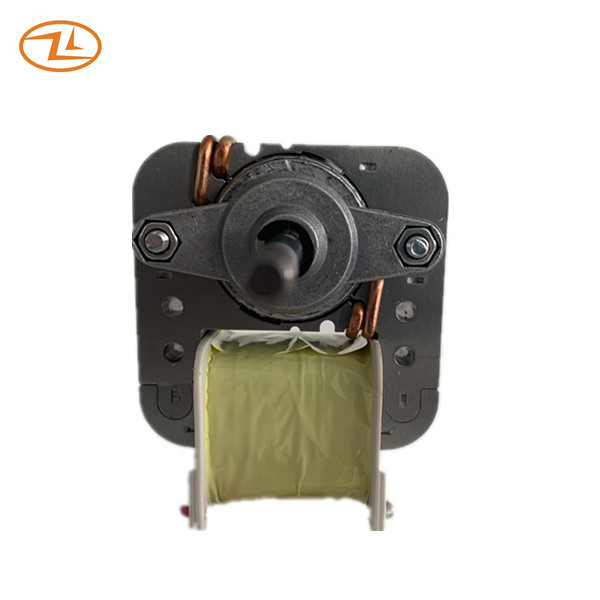

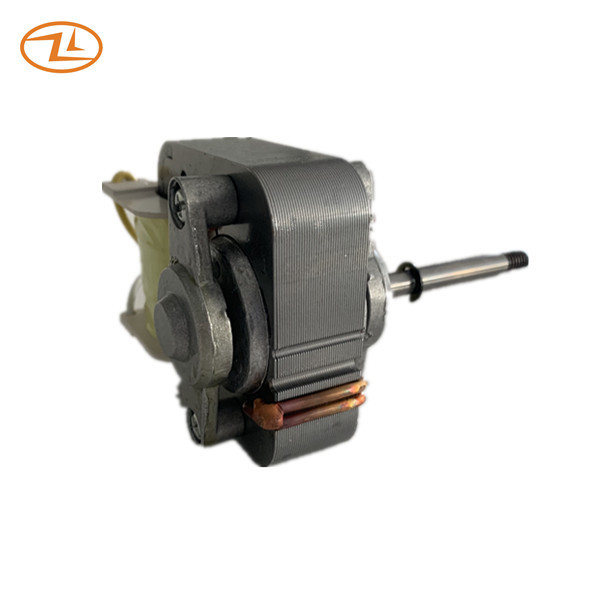

YJ62 Series Shaded Pole Motor Low Noise Long Life 127V 60HZ Fan Use
This motor is one type of shaded pole motor, YJ62 series with 3 speed steps for fan use.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load (fan blade) | |||
| YJ62-20 | 127V 60HZ | High speed | Medium speed | Low speed | |
| Current A | 0.55+/-15% | 0.44+/-15% | 0.28+/-15% | ||
| Input power W | 38+/-15% | 31+/-15% | 20+/-15% | ||
| Speed RPM | 2400+/-10% | 2050+/-10% | 1450+/-10% | ||
Insulation resistance:The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Circulator Fan, Heater Fan, Stand fan, Table fan
