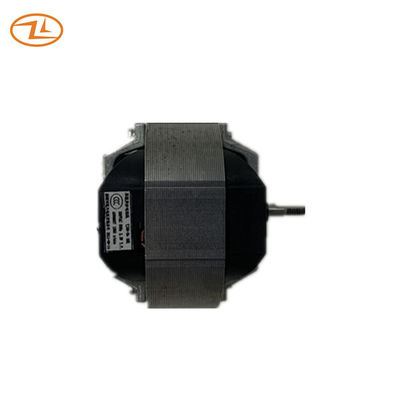

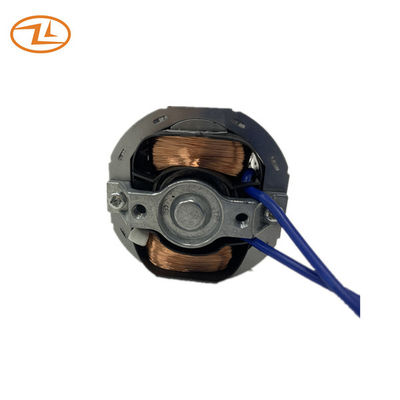

Shaded Pole Motor YJ58-20 220V 50HZ For Circulator Fan Heater Fan Table Fan
This YJ58 series motor is also called O-frame motor. It is mainly applied in bathroom fan, ventilation fan, circulator fan and heater fans.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ58-20 | 220 | 50 | 0.145+/-15% | 18+/-15% | 2800+/-10% | <198 | 0.185+/-15% | 28+/-15% | 1250+/-10% |
Drawing:
Application: Circulator Fan, Heater Fan, Stand fan, Table fan
