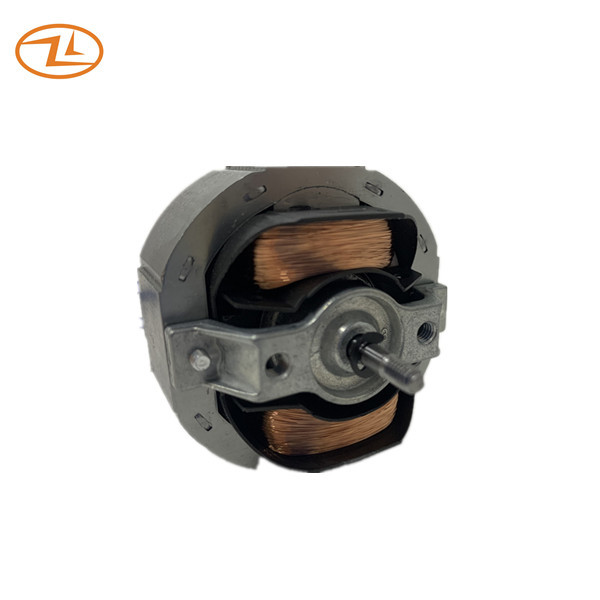

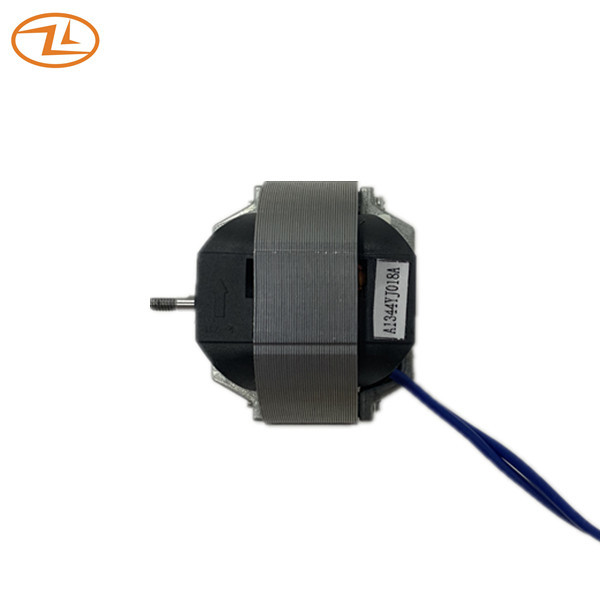

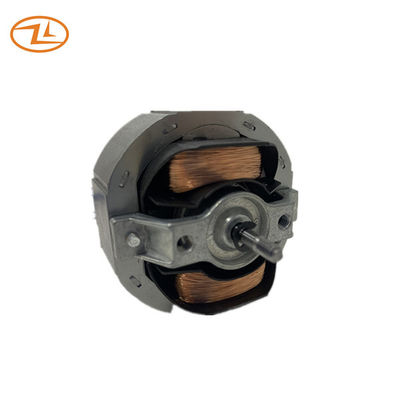

Shaded Pole Motor YJ58-20 220V 50HZ CL.B For Bathroom Fan Zhaoli Motor
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load (fan blade) | ||||
| Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ58-20 | 220 | 50 | <198 | 0.185+/-15% | 28+/-15% | 1250+/-10% |
Drawing:
Application: Bathroom Fan, Circulator Fan
