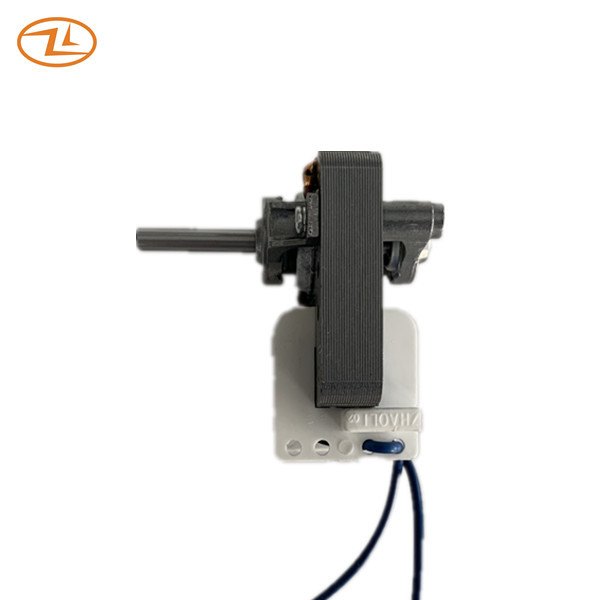

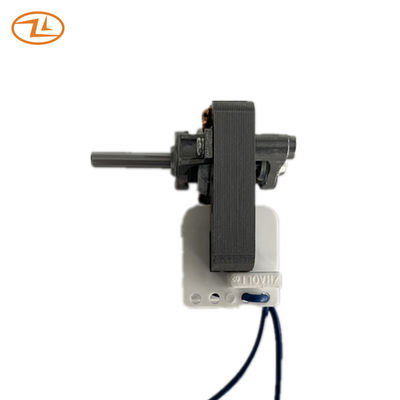

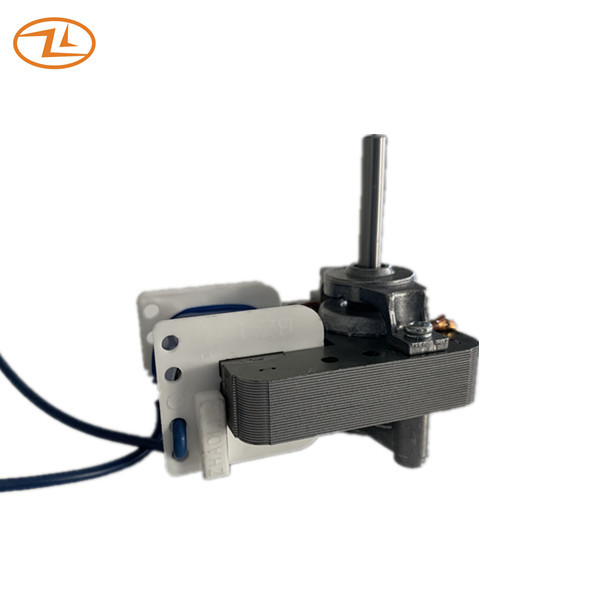

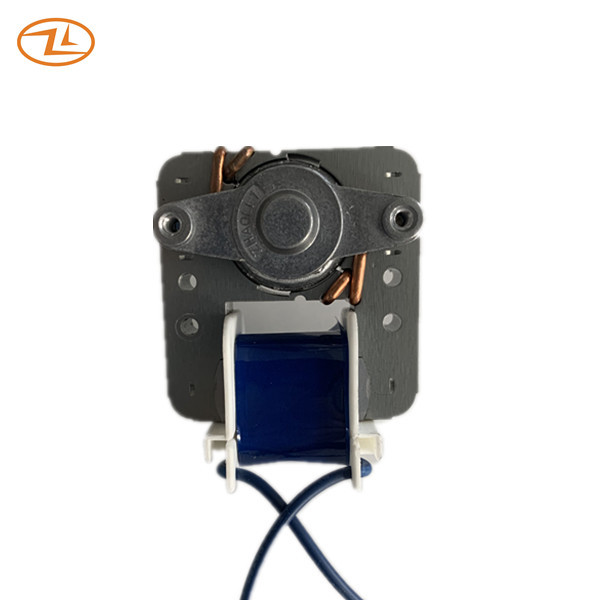

Tangential Fan Shaded Pole Motor Asynchronous 120V 12.5W Low Noise

1000pcs
MOQ
Tangential Fan Shaded Pole Motor Asynchronous 120V 12.5W Low Noise
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shaded Pole Motor
Rated Voltage: 120V 60HZ
Stack Size: 48x50mm
Lamination: 12mm
Insulation Class: CL.B
Bearing: Sleeve Bearing Ball Bearing Optional
Shaft: Customized
Load: Fan Blade
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protection Feature: Thermal Protection
Application: Circulator Fan
High Light:

Asynchronous Shaded Pole Motor

,

12.5W Shaded Pole Motor

,

120V Tangential Fan Motor
Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ48/200
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

YJ48/200 Shaded Pole Motor For Heater Fan Tangential Fan 120V 60HZ Low Noise



Specification:

Model



Rated Voltage/ Frequency

V/HZ

 Free Load On Load (fan blade)


Current

A



Input power

W

Speed

RPM

 Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ48/200 120 60 <0.15A <12.5W >2400 <110 <0.18A <13W >2100


Drawing:

Tangential Fan Shaded Pole Motor Asynchronous 120V 12.5W Low Noise 0



Application: Tangential fan, blower fan, heater fan, circulator fan
