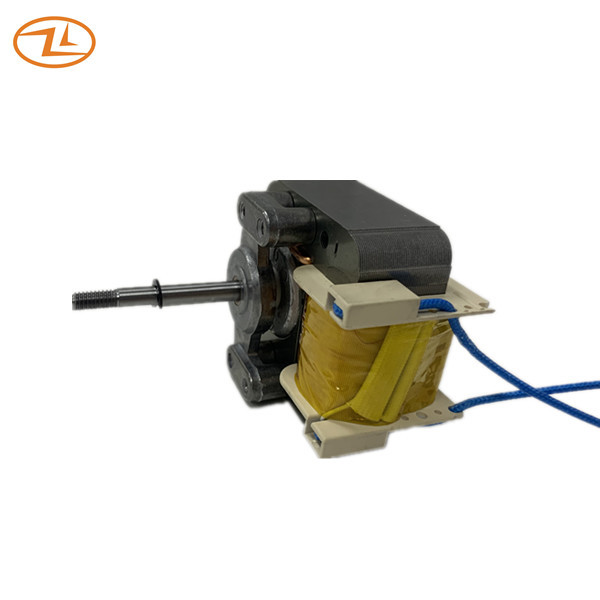

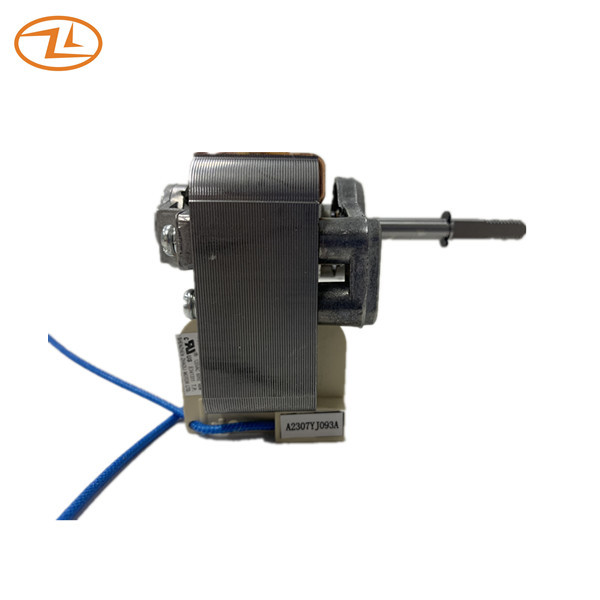

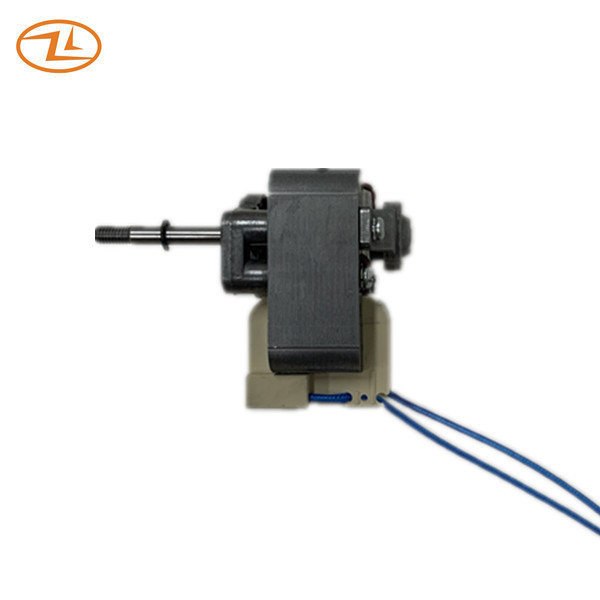

Air Fryer Motor Shaded Pole Motor Zhaoli Motor YJ61/300H1 120V 60HZ CL.H
This is one kind of shaded pole motors, mainly applied in Air Fryer products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load (fan blade) | ||||
| Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61/300H1 | 120 | 60 | <198 | 0.75+/-15% | 43+/-15% | 1250+/-15% |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Air fryer, oven
