Low Noise 230V 50HZ shaded pole gear motor 12mm Lamination

Low Noise 230V 50HZ shaded pole gear motor 12mm Lamination
Features Gallery Product Description Request A Quote
Name: Shaded Pole Motor
Rated Voltage: 230V 50HZ
Stack Size: 48x50mm
Lamination: 12mm
Insulation Class: CL.H
Bearing: Sleeve Bearing Ball Bearing Optional
Shaft: Customized
Load: Fan Blade
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protection Feature: Thermal Protection/ Corrision Protection
Application: Tangential Fan
High Light:

230V 50HZ Shaded Pole Gear Motor


REACH Single Phase Ac Synchronous Motor


12mm Lamination Shaded Pole Electric Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ48-12
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

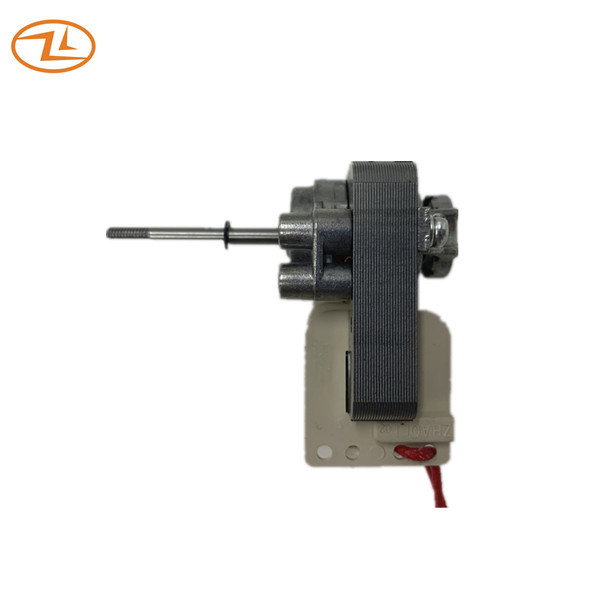

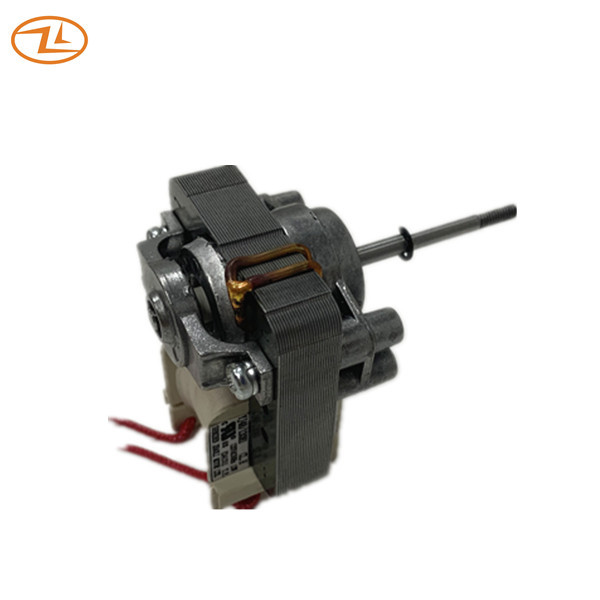

Low Noise 230V 50HZ Shaded Pole Gear Motor 12mm Lamination


Fan Motor Shaded Pole Motor YJ48/200 Low Noise YJ48/200 CL.H 230V 50HZ


Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions. We can also provide fan impellers.





Rated Voltage/ Frequency


On Load (fan blade)
  Start-up voltage V



Input power




YJ48-12 230 50 <207 <0.25A <16W >1800


Low Noise 230V 50HZ shaded pole gear motor 12mm Lamination 0


Application: Tangential fan, blower fan, cross flow fan
