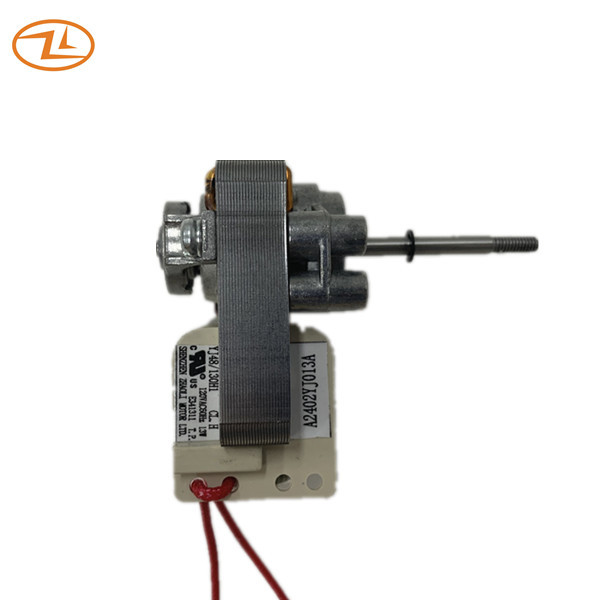

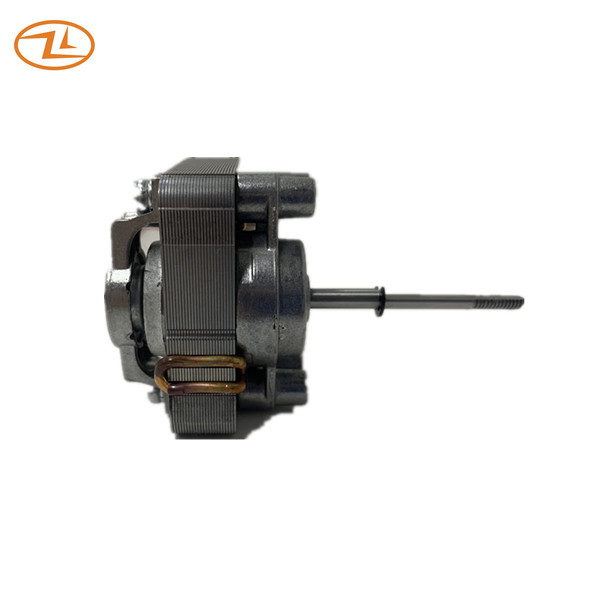

YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series
Fan Motor Shaded Pole Motor YJ48/200 Low Noise YJ48/200 CL.H 230V 50HZ
This is one type of shaded pole motor. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions. We can also provide fan impellers.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load (fan blade) | ||||
| Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ48-12 | 230 | 50 | <207 | <0.25A | <16W | >1800 |
| Working Temp. | 0~40℃ |
| Working humidity | 90% RH max |
| Voltage fluctuation | 5% range of the rated voltage at rated load |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
Application: Tangential fan, blower fan, cross flow fan
