Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor

1000pcs
MOQ
Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shaded Pole Motor
Rated Voltage: 120V 60HZ
Stack Size: 62.5x62.5mm
Lamination: 20.5mm
Insulation Class: CL.H
Bearing: Sleeve Bearing Ball Bearing Optional
Shaft: Customized
Load: Fan Blade
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protection Feature: Thermal Protection
Application: Water Dispenser
High Light:

2400 RPM Cooling Fan Motor

,

Zhaoli Cooling Fan Motor

,

120V 1 Phase Asynchronous Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ62/200
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

Shaded Pole Motor Zhaoli Motor Fan Motor YJ62/200 For Cooling Purpose Long Life



Specification:

Model



Rated Voltage/ Frequency

V/HZ

On Load (fan blade)
  Start-up voltage V

Current

A

Input power

W

Speed

RPM

YJ62/200 120 60 <207 <0.12A <56W >2400




Working Temp. 0~40℃
Working humidity 90% RH max
Voltage fluctuation 5% range of the rated voltage at rated load
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.


Drawing:

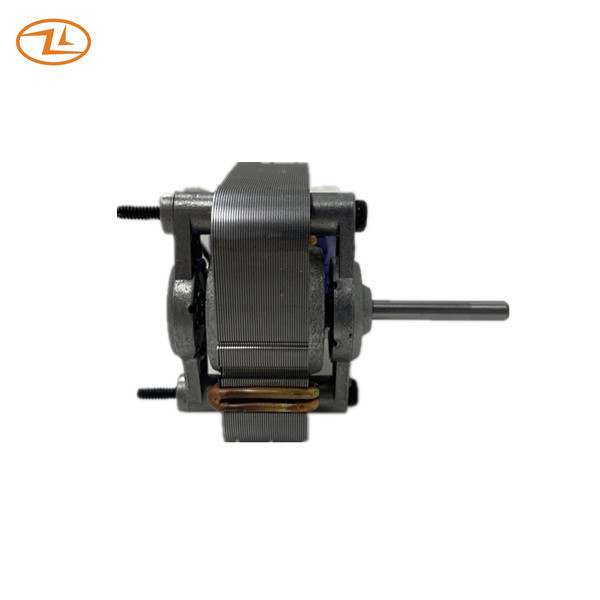

Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor 0

Application: Cooling fan, Water dispenser

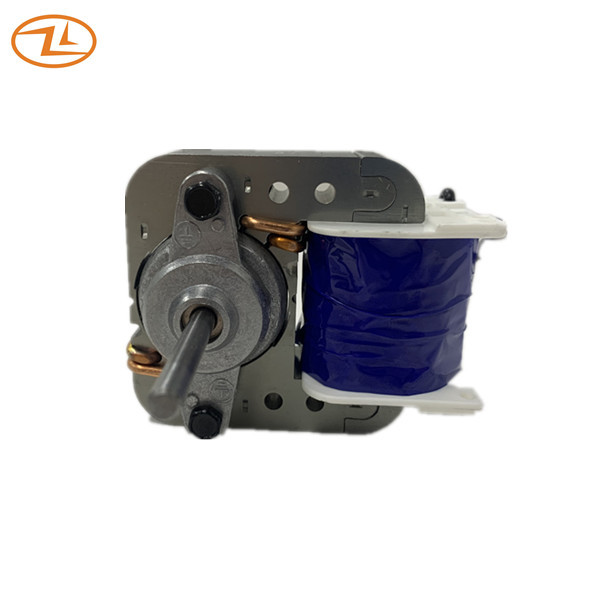

Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor 1
