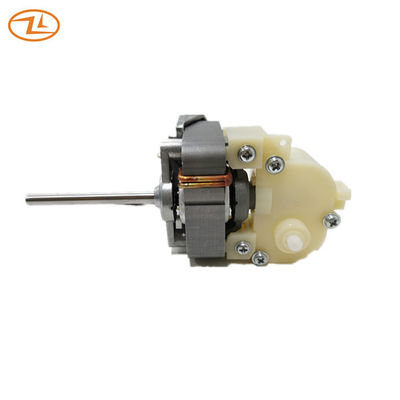

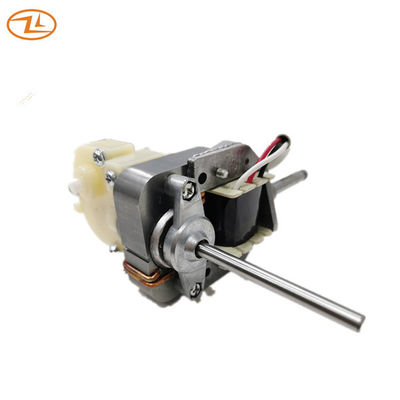

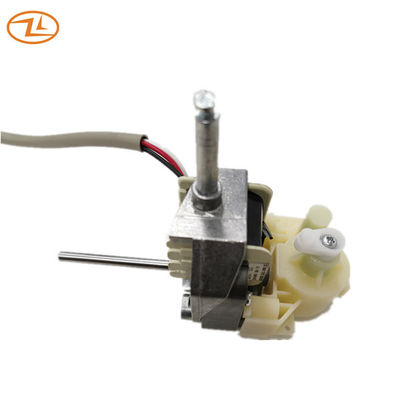

Fan Motor With Gearbox For Oscilating Fan Stand Fan Low Noise
This motor is assemblied with a gearbox to do oscilating for fan product.
Specification:
| Rated voltage/frequency V/HZ | 220V 60HZ | |
| High speed | Rated current | 0.165±20%A |
| Rated power | 21.5±20%W | |
| Rated speed | 2350±200RPM | |
| Low speed | Starting voltage | <= 176V |
| Rated current | 0.135±20%A | |
| Rated power | 17.5±20%W | |
| Rated speed | 2150±200RPM | |
| Rising Temp. | <85K | |
| Lock Temp. | IEC60335-1 | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
Drawing:
Application: Stand fan, Oscilating fan
