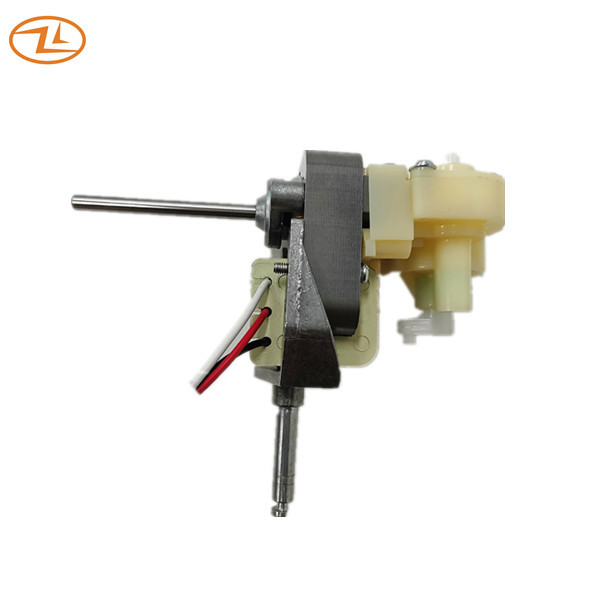

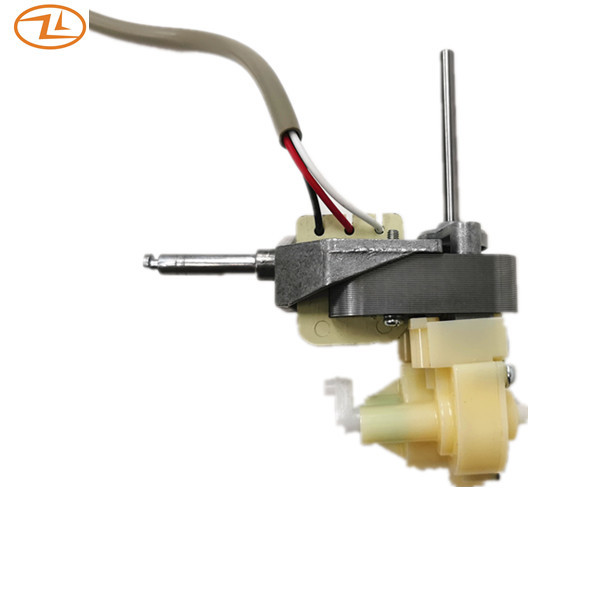

Shaded Pole Motor Gearbox Fan Motor YJ61-18 220V 50HZ Thermal Protector
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ | |
| Voltage fluctuation | ±5% of rated voltage | |
| On load | Rated current | 0.135±20%A |
| Rated power | 20.5±20%W | |
| Rated speed | 2350±200RPM | |
| Rising Temp. | IEC60335-1 <85K | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
Drawing:
Application: Stand fan, Oscilating fan
