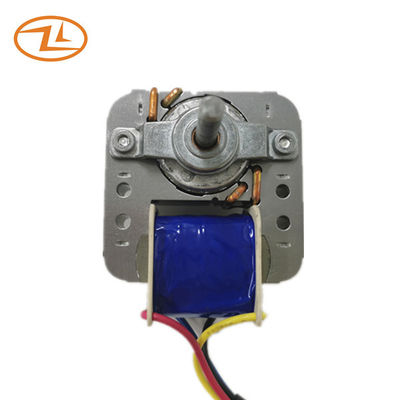

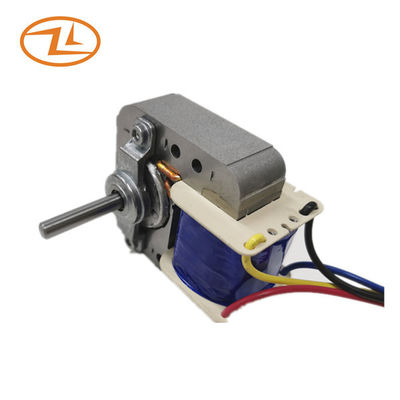

Shaded Pole Fan Motor YJ60-20 127V 60HZ With 3 Speed Steps For Table Fan
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (9inch fan) | |||||
|
Current A
|
Input power W |
Speed RPM |
Current A |
Input power W |
Speed RPM |
|||
| YJ60-20 | 127 | 60 | 0.31 | 21 | 3400 | <= 0.55 | <= 35 | 2300+/-10% |
| 0.23 | 16.5 | 3300 | <= 0.45 | <= 30 | 1800+/-10% | |||
| 0.16 | 12.0 | 3200 | <= 0.35 | <= 25 | 1300+/-10% | |||
| YJ60-20 | 220 | 50 | 0.13 | 17 | 2850 | <= 0.25 | <= 30 | 2100+/-10% |
| 0.08 | 11 | 1400 | <= 0.20 | <= 23 | 1500+/-10% | |||
Drawing:
Application: Table fan, box fan, wall fan
