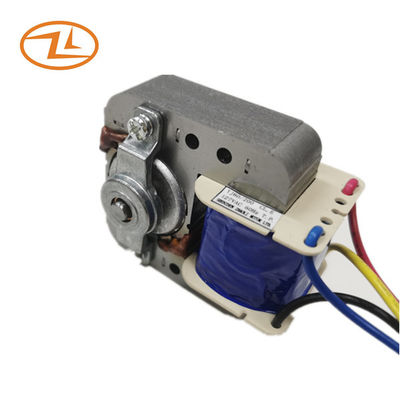

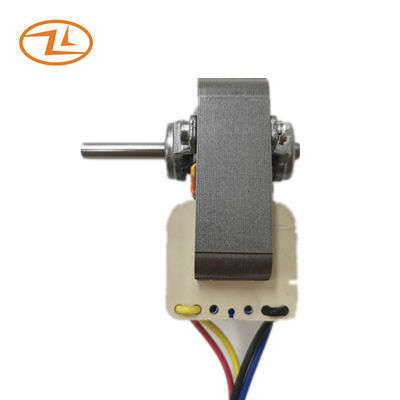

Shaded Pole Motor Small Fan Motor YJ60-20 220V 50HZ With 2/3 Speed Steps
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (9inch fan) | |||||
|
Current A
|
Input power W |
Speed RPM |
Current A |
Input power W |
Speed RPM |
|||
| YJ60-20 | 220 | 50 | 0.13 | 17 | 2850 | <= 0.25 | <= 30 | 2100+/-10% |
| 0.08 | 11 | 1400 | <= 0.20 | <= 23 | 1500+/-10% | |||
| YJ60-20 | 127 | 60 | 0.31 | 21 | 3400 | <= 0.55 | <= 35 | 2300+/-10% |
| 0.23 | 16.5 | 3300 | <= 0.45 | <= 30 | 1800+/-10% | |||
| 0.16 | 12.0 | 3200 | <= 0.35 | <= 25 |
1300+/-10% |
|||
This is one type of shaded pole motor with 2/3 speed steps, mainly applied in small electric fans. The speed steps are flexible to adjust.
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Drawing:
Application: Table fan, box fan, wall fan
