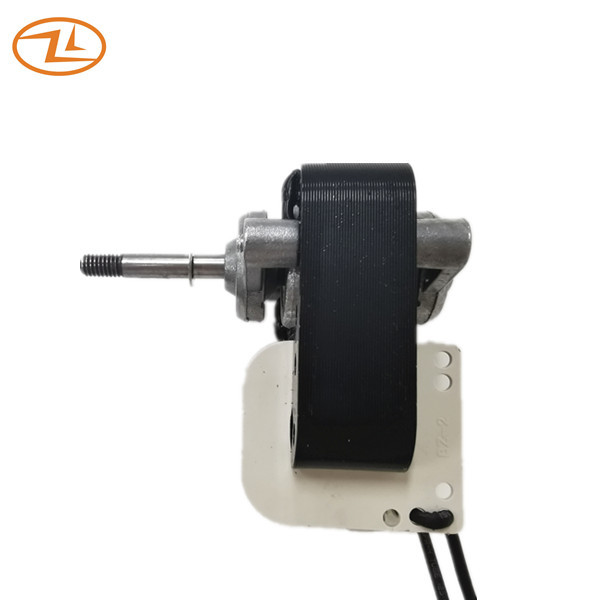

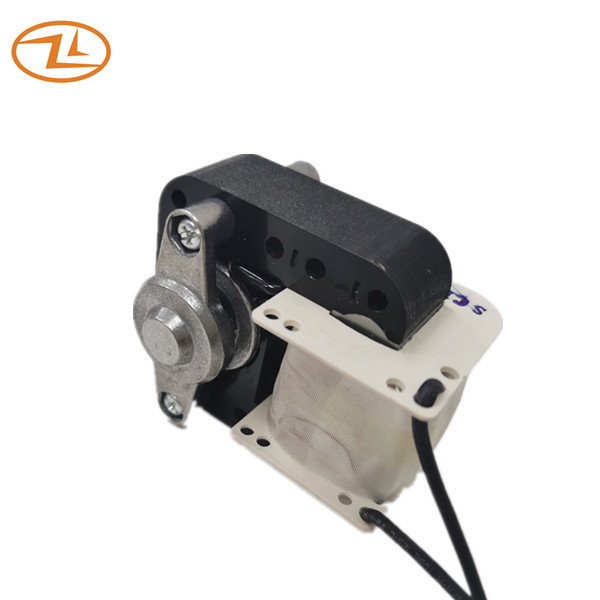

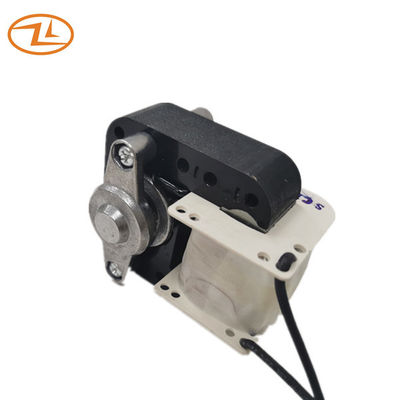

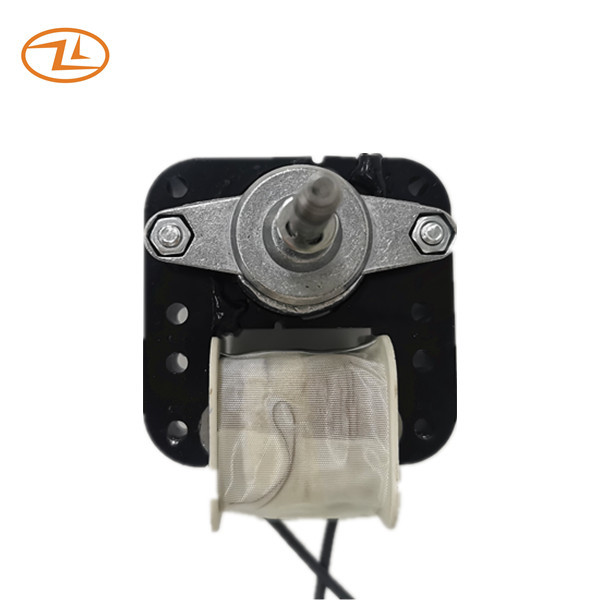

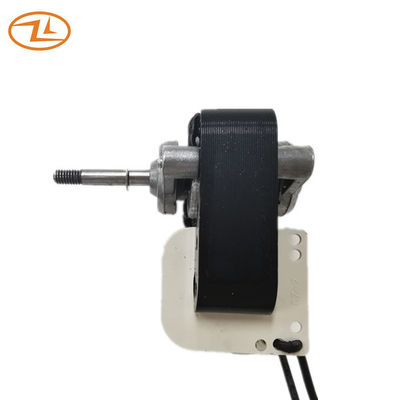

Shaded Pole Motor For Dehumidifier 100V 50/60HZ CL.H Thermal Protection
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
This is one type of shaded pole motor, mainly applied in dehumidifer with oscilating fan, fan heaters, small electric fans and air fryers The speed steps are flexible to adjust.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 100 | 50 | 0.83+/-15% | 32+/-15% | 2700+/-10% | 0.85+/-15% | 43+/-15% | 850+/-100 | |
| 100 | 60 | 0.54+/-15% | 25+/-15% | 3200+/-10% | <60V | 0.63+/-15% | 35+/-15% | 750+/-100 | |
Drawing:
Application:
