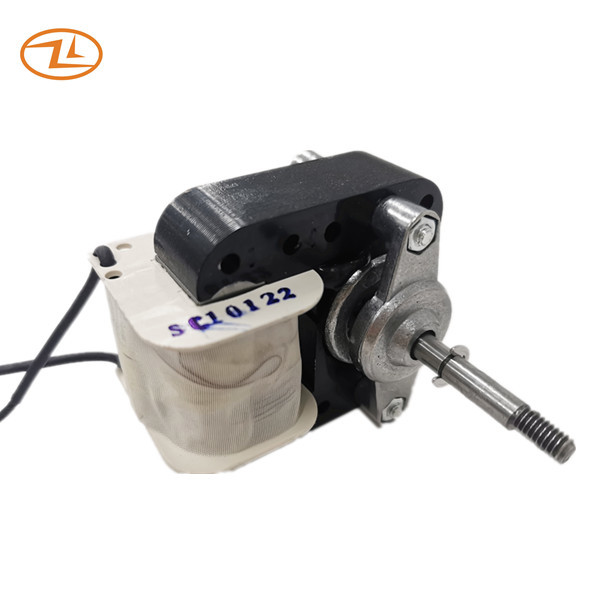

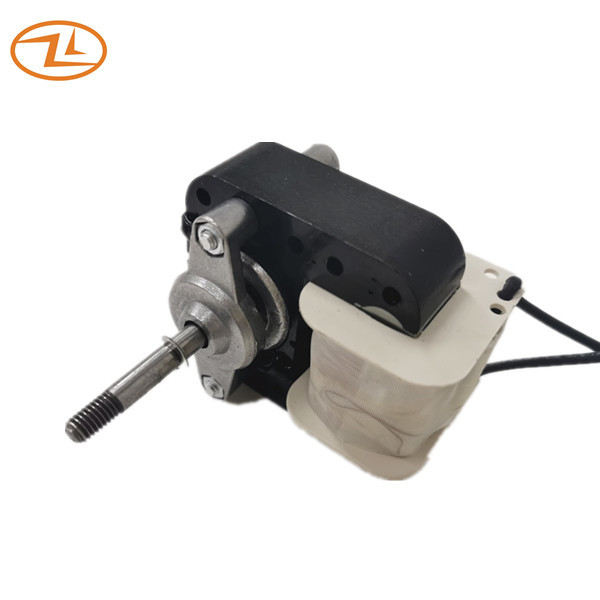

AC Shaded Pole Motor 220V 50HZ Dehumidifier Or Circulator Fan Use Rust Proof
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 220 | 50 | 0.70+/-15% | 28+/-15% | 2700+/-10% | 198V | 0.75+/-15% | 40+/-15% | 850+/-100 |
This is one type of shaded pole motor with following features:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Drawing:
Application: Mainly applied in dehumidifier, air purifier, circulator fan
