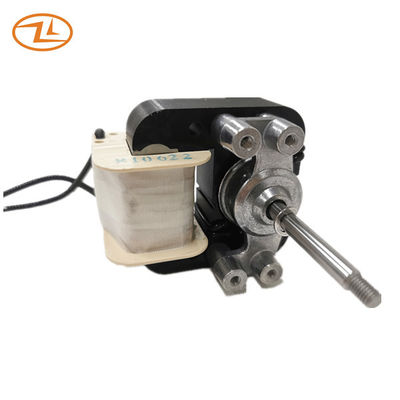

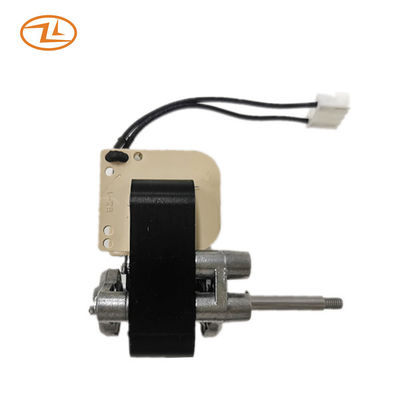

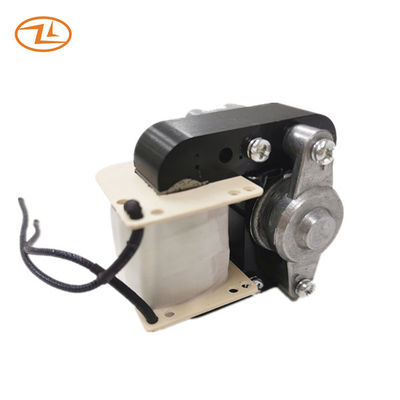

Shaded Pole Motor For Personal Oscilating Circulator Fan 100V 50/60HZ 16999
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
This is one type of shaded pole motor with rust proof and thermal protection, mainly applied in seasonal appliances.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 100 | 50 | 0.83+/-15% | 34.5+/-15% | 2700+/-10% | 0.84+/-15% | 38.5+/-15% | 2550+/-10% | |
| 100 | 60 | 0.58+/-15% | 26+/-15% | 3300+/-10% | <60V | 0.62+/-15% | 32.5+/-15% | 3000+/-10% | |
Drawing:
Application: Mainly applied in dehumidifier, air purifier, circulator fan
