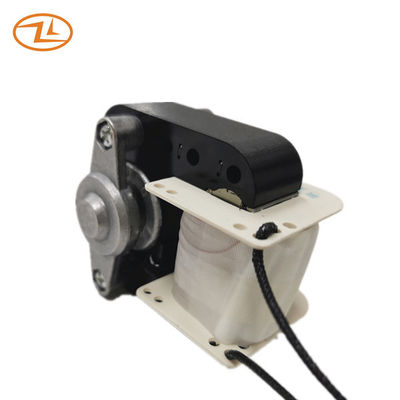

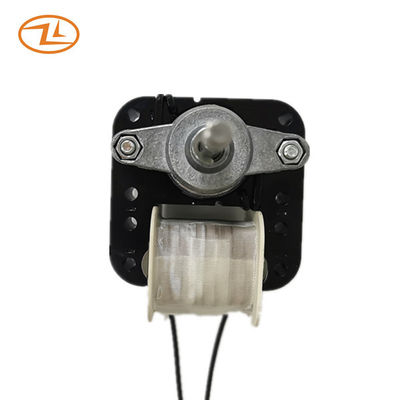

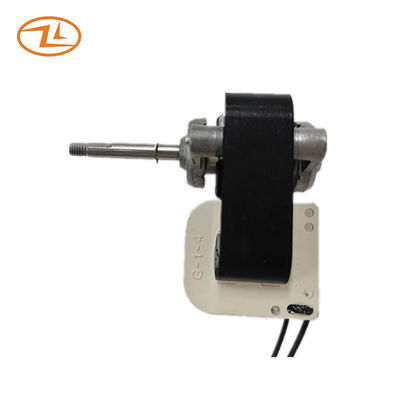

AC Shaded Pole Motor For Bed Warmer Blanket Heater Dryer 100V 50/60HZ

1000pcs
MOQ
AC Shaded Pole Motor For Bed Warmer Blanket Heater Dryer 100V 50/60HZ
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shaded Pole Motor 622061
Rated Voltage: 100V 50/60HZ
Stack Size: 61x60.5mm
Lamination: 20.5mm
Insulation Class: CL.H
Bearing: Sleeve Bearing Ball Bearing Optional
Shaft: Customized
Load: Fan Blade
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protection Feature: Thermal Protection
Application: Bed Warmer Blanket Heater Dryer
Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ61/200
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

AC Shaded Pole Motor For Bed Warmer Blanket Heater Dryer 100V 50/60HZ



Specification:



Model



Rated Voltage/ Frequency

V/HZ

Free Load   On Load (impeller)

Current

A



Input power

W

Speed

RPM

Start-up voltage V

Current

A

Input power

W

Speed

RPM

YJ61-20 100 50 0.76+/-15% 33+/-15% 2700+/-10%   0.77+/-15% 41+/-15% 1700+/-10%
100 60 0.51+/-15% 25.5+/-15% 3300+/-10% <80V 0.58+/-15% 34+/-15% 1600+/-10%


Drawing:



AC Shaded Pole Motor For Bed Warmer Blanket Heater Dryer 100V 50/60HZ 0





Application: Dryer, Heater, Circulator Fan, Humidifier, Air purifier



AC Shaded Pole Motor For Bed Warmer Blanket Heater Dryer 100V 50/60HZ 1
