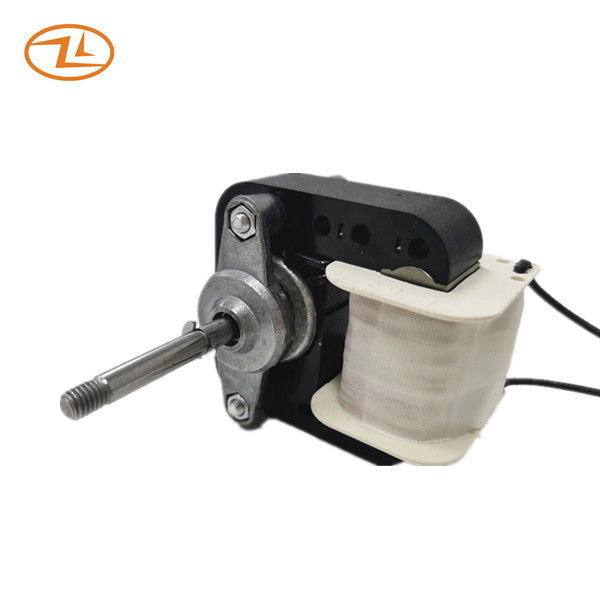

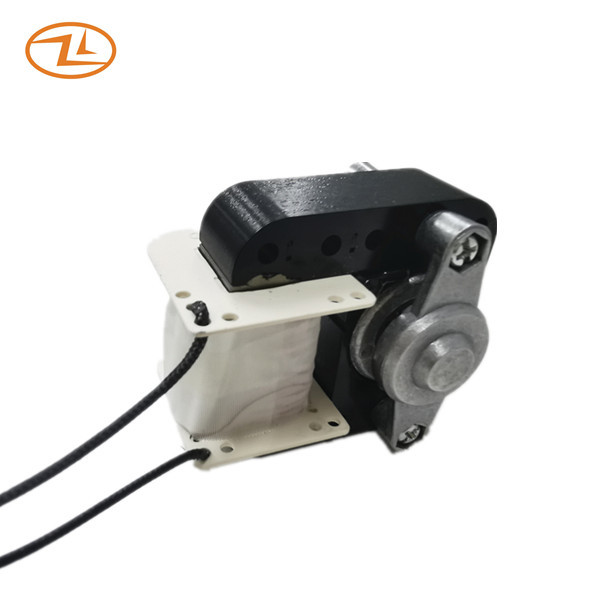

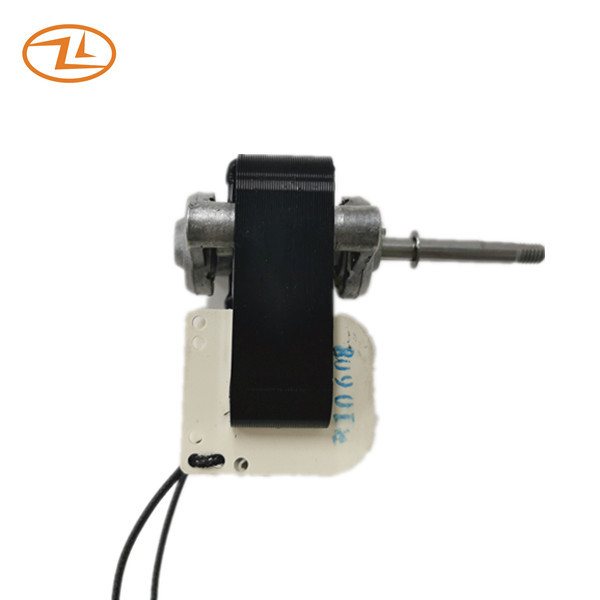

C-Frame Motor For Blanket Dryer Bed Heater Shoe Dryer Boot Dryer 120V 60HZ
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece. Also it is called C-frame motor.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 120 | 60 | 0.50+/-15% | 25+/-15% | 3300+/-10% | <90V | 0.56+/-15% | 33+/-15% | 1600+/-10% |
Drawing:
Application: Boot Dryer, Blanket Dryer, Bed warmer, Heater, Circulator Fan, Humidifier, Air purifier
