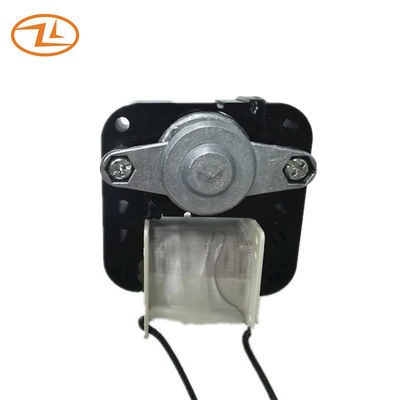

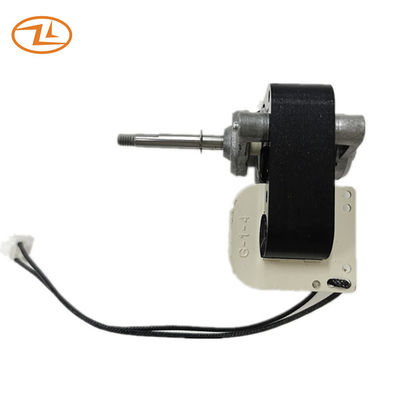

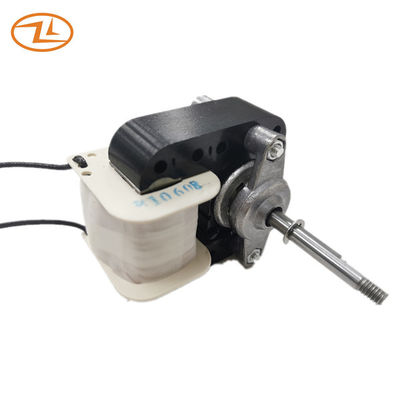

220V 50HZ Shaded Pole Motor For Blanket Dryer Bed Warmer Rust-Proof CL.H
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin.Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (impeller) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-20 | 220 | 50 | 0.73+/-15% | 30+/-15% | 2700+/-10% | <198 | 0.75+/-15% | 40+/-15% | 1700+/-10% |
Drawing:
Application: Boot Dryer, Blanket Dryer, Bed warmer, Heater, Circulator Fan, Humidifier, Air purifier
