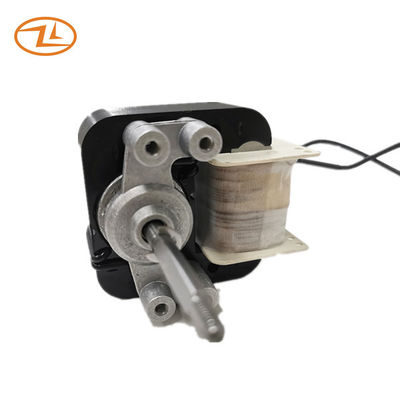

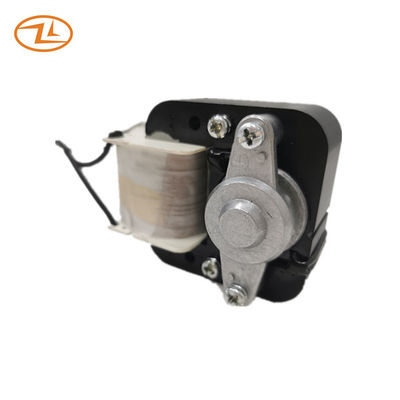

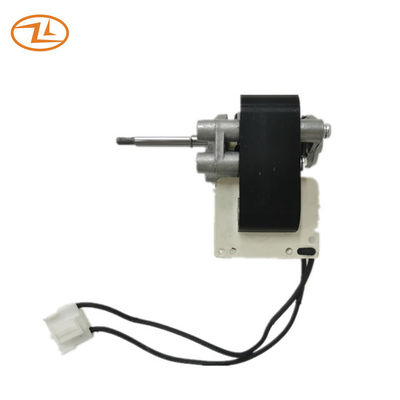

AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
This is one type of shaded pole motor, mainly applied in dehumidifer with oscilating fan, fan heaters, circulator fan.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61/300 | 100 | 50 | 1.10+/-15% | 44+/-15% | 2700+/-10% | 1.10+/-15% | 52+/-15% | 2000+/-10% | |
| 100 | 60 | 0.75+/-15% | 34+/-15% | 3300+/-10% | <80V | 0.80+/-15% | 45+/-15% | 2000+/-10% | |
Drawing:
Application: Blanket dryer
