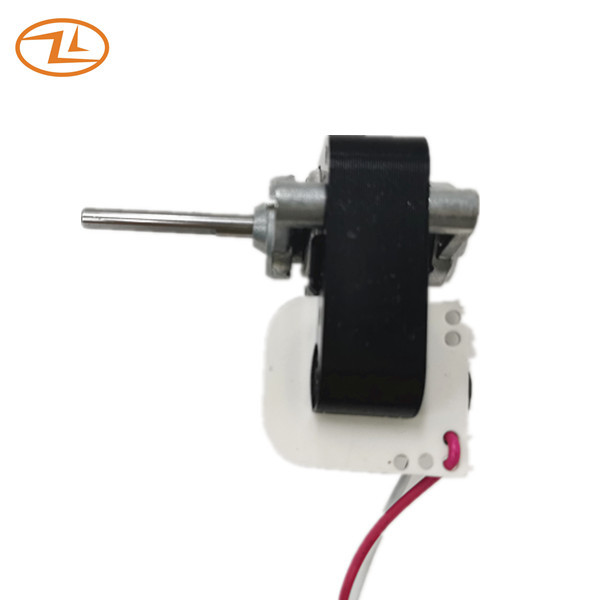

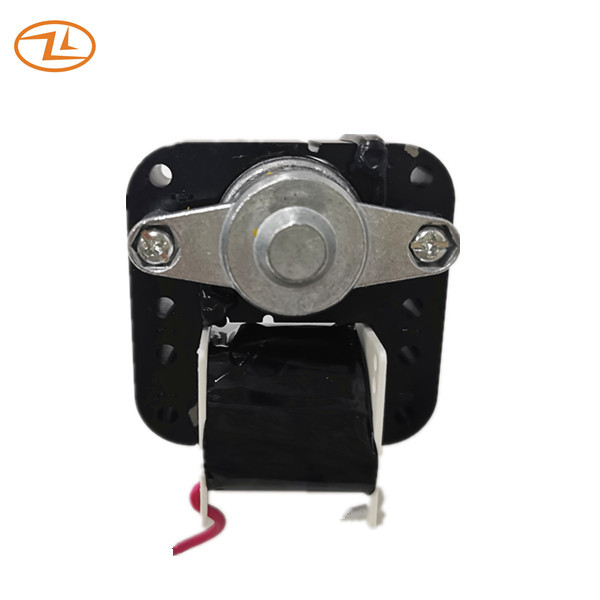

Dehumidifer AC Motor For Japan Use 100v 50/60hz YJ61/200 602955 Stack Painted
This is one type of single phase shaded pole motor.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61/200 | 100 | 50 | 0.45+/-15% | 23+/-15% | 2700+/-10% | 0.52+/-15% | 30+/-15% | 2500+/-10% | |
| 100 | 60 | 0.35+/-15% | 19+/-15% | 3300+/-10% | <80V | 0.44+/-15% | 26.5+/-15% | 2300+/-10% |
|
Drawing:
Application: dehumidifier, air purifier, circulator fan
