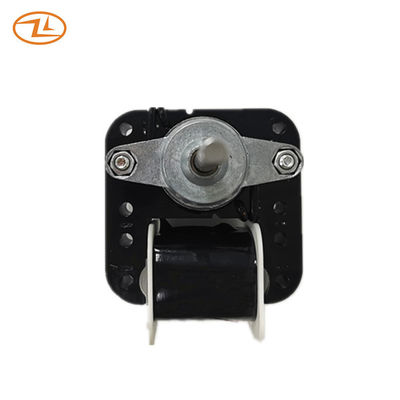

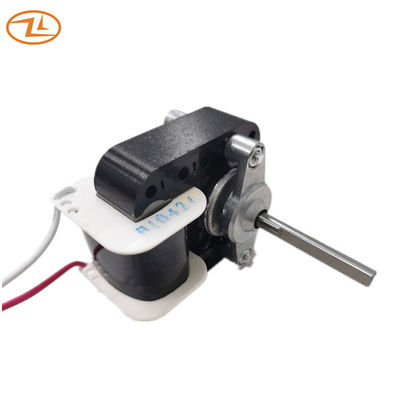

AC C-Frame Motor Shaded Pole Motor For Dehumidifer With Circulator Fan Use 120v 60hz
This motor is with 3 speed steps for home dehumidifer.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61/200 | 120 | 60 | 0.30+/-15% | 18.5+/-15% | 3300+/-10% | <80V | 0.38+/-15% | 25+/-15% | 2400+/-10% |
Drawing:
Application: dehumidifier, air purifier, circulator fan
