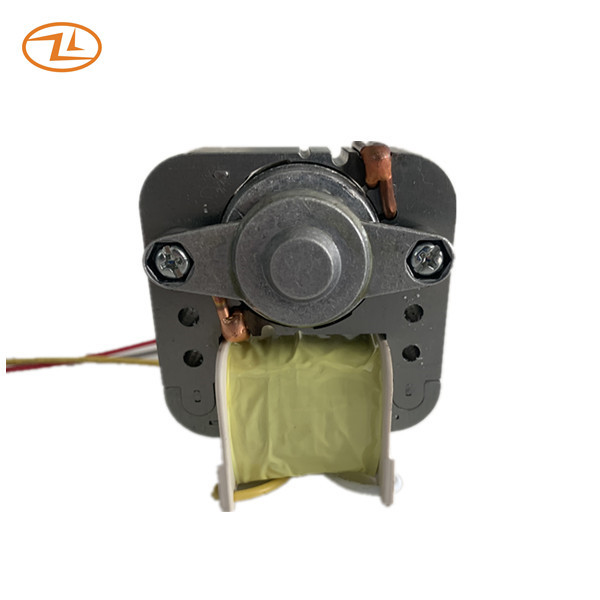

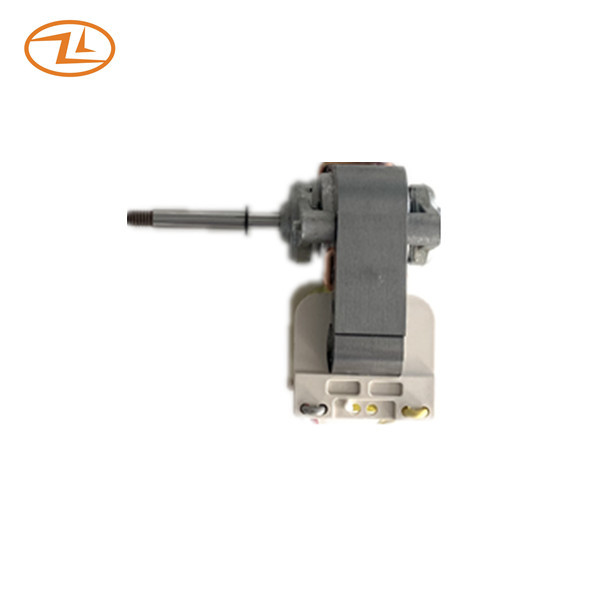

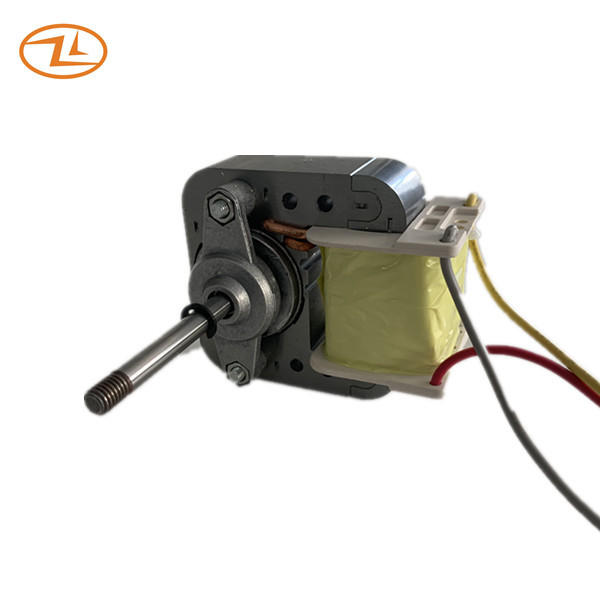

Shaded Pole Motor Fan Motor Zhaoli Motor YJ62-20 With Three Speed Steps
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
On Load (fan blade) | |||
| YJ62-20 | 127V 60HZ | High speed | Medium speed | Low speed | |
| Current A | 0.55+/-15% | 0.44+/-15% | 0.28+/-15% | ||
| Input power W | 38+/-15% | 31+/-15% | 20+/-15% | ||
| Speed RPM | 2400+/-10% | 2050+/-10% | 1450+/-10% | ||
Drawing:
Application: Circulator Fan, Heater Fan, Stand fan, Table fan
