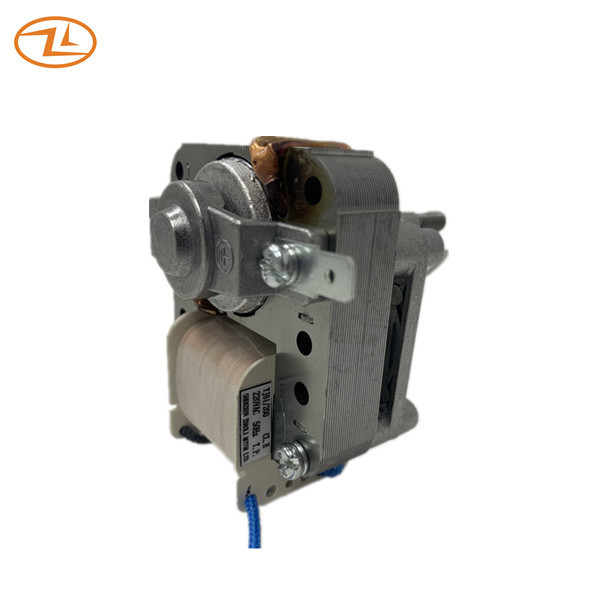

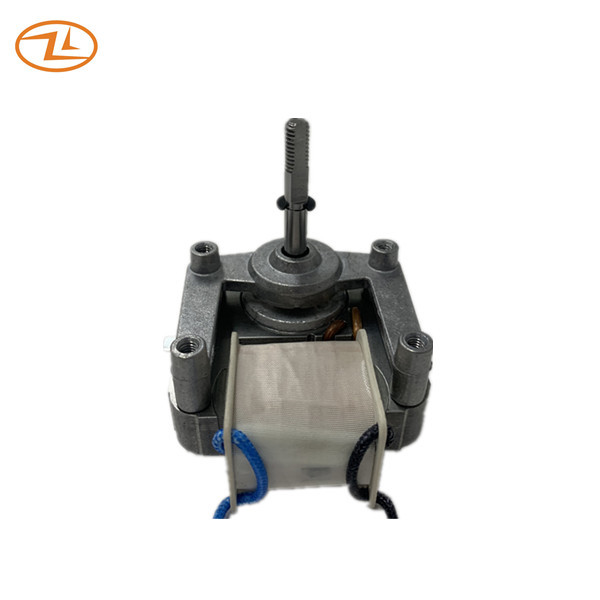

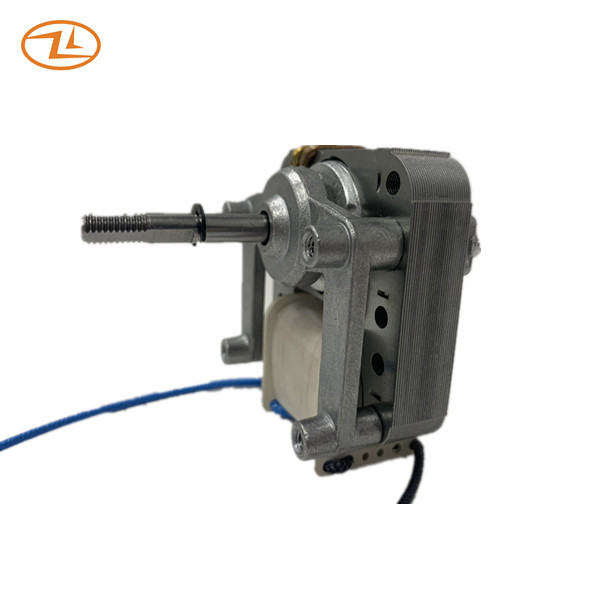

Shaded Pole Motor For Tangential Fan Cross Flow Fan Use YJ61-14 CL.H 220V 50HZ
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ61-14 | 220 | 50 | 0.13+/-15% | 17+/-15% | 2600+/-10% | <198 | 0.15+/-15% | 21+/-15% | 1600+/-15% |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Fan, Cross flow fan
