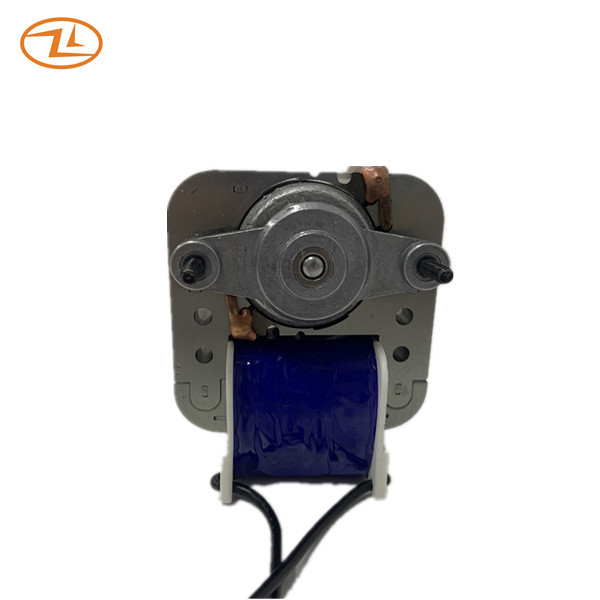

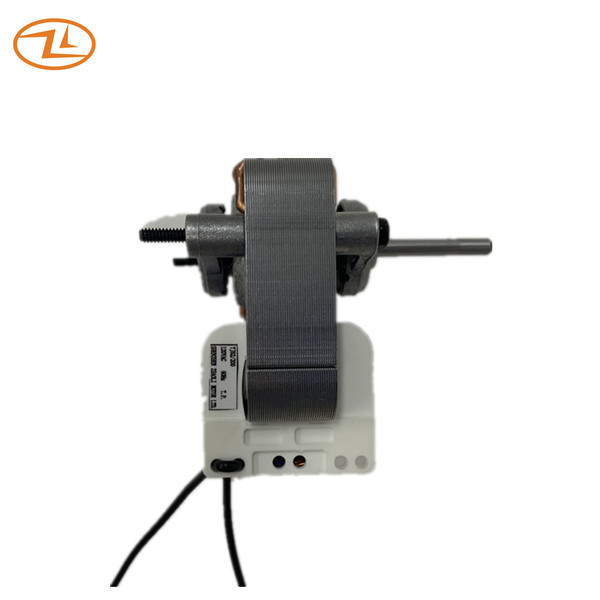

CL.H Shaded Pole Motor Cooling Fan Motor For Water Dispenser YJ62-20 120V 60HZ
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
|
Model
|
Rated Voltage/ Frequency V/HZ |
Free Load | On Load (fan blade) | ||||||
|
Current A
|
Input power W |
Speed RPM |
Start-up voltage V |
Current A |
Input power W |
Speed RPM |
|||
| YJ62/200 | 120 | 60 | <0.90A | <38W | >3400 | <207 | <0.12A | <56W | >2400 |
Drawing:
Application: Cooling fan, Water dispenser
