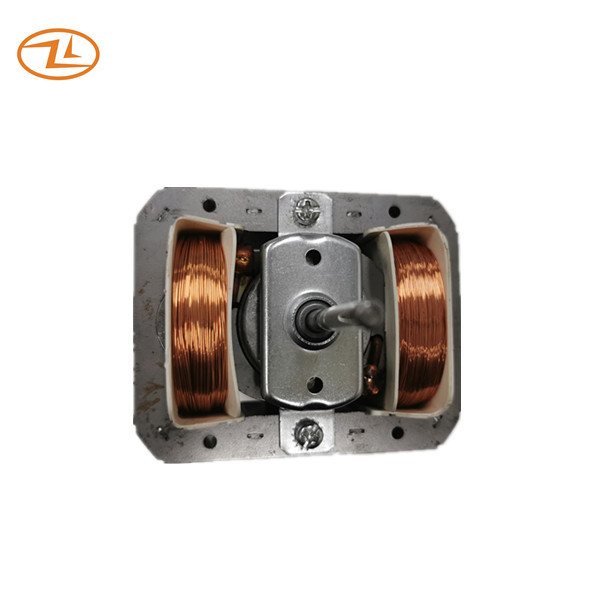

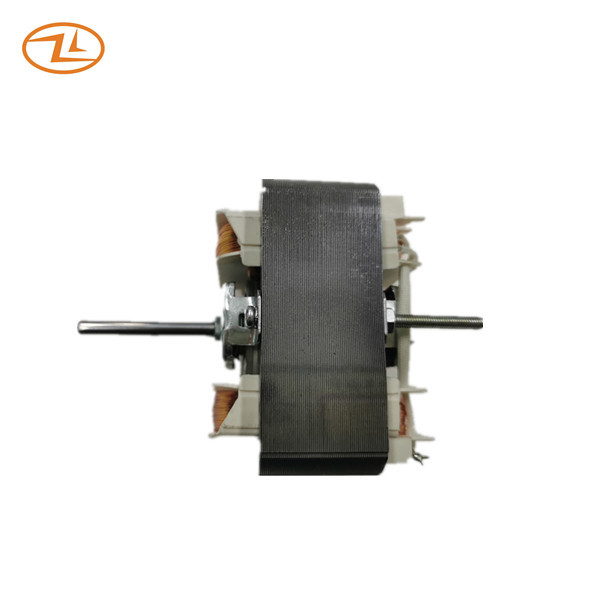

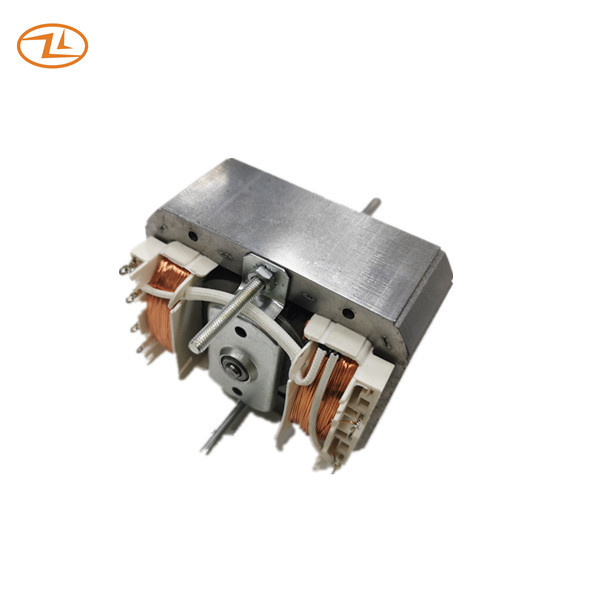

Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise

1000pcs
MOQ
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shaded Pole Motor
Rated Voltage: 230V 50HZ
Stack Size: 84.5x67.5mm
Lamination: 30mm
Insulation Class: CL.B
Bearing: Sleeve Bearing Ball Bearing Optional
Shaft: Customized
Load: Fan Blade
Printing: Customized Printing
Packing: Customized Packing
Motor Type: Asynchronous Motor
Phase: Single Phase
Protection Feature: Thermal Protection
Application: Kitchen Hood
High Light:

kitchen hood shaded pole motor

,

asynchronous shaded pole motor low noise

,

230v 50hz shaded pole ac motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ84-30
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

YJ84-30 Shaded Pole Motor Kitchen Hood Motor Zhaoli Motor 230V 50HZ Low Noise



Specification:



Rated Voltage/ Frequency

V/HZ

Speed steps Free load On load

Current

A



Input power

W

Speed

RPM

Current

A



Input power

W

Speed

RPM

230V 50HZ High 0.49+/-15% 53+/-15% >2900 0.62+/-15% 87+/-15% 2320+/-150
Medium 0.35+/-15% 42+/-15% >2900 0.51+/-15% 74+/-15% 2000+/-150
Low 0.30+/-15% 36.5+/-15% >2900 0.47+/-15% 67.5+/-15% 1630+/-150



Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strengh: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.



Drawing:



Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise 0


Application: Kitchen hood

Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise 1
