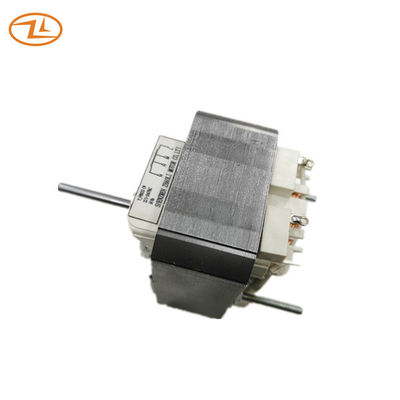

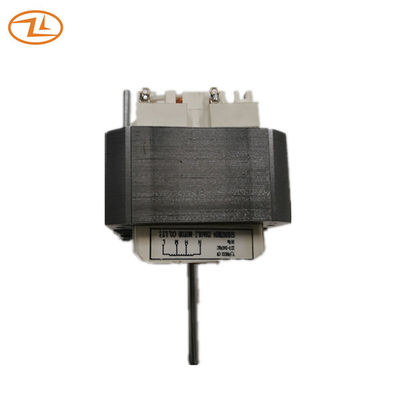

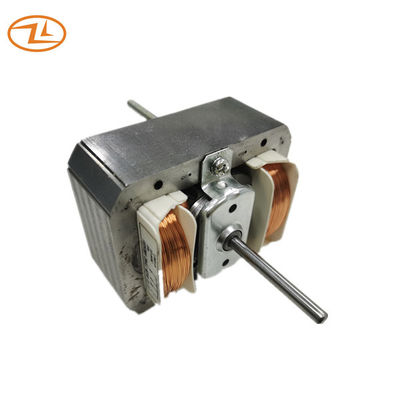

Shaded Pole Motor YJ84-30 Hood Motor Zhaoli Motor 230V 50HZ Low Noise Sleeve Bearing
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
|
Rated Voltage/ Frequency V/HZ |
Speed steps | Free load | On load | ||||
|
Current A
|
Input power W |
Speed RPM |
Current A
|
Input power W |
Speed RPM |
||
| 230V 50HZ | High | 0.49+/-15% | 53+/-15% | >2900 | 0.62+/-15% | 87+/-15% | 2320+/-150 |
| Medium | 0.35+/-15% | 42+/-15% | >2900 | 0.51+/-15% | 74+/-15% | 2000+/-150 | |
| Low | 0.30+/-15% | 36.5+/-15% | >2900 | 0.47+/-15% | 67.5+/-15% | 1630+/-150 | |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strengh: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Kitchen hood
