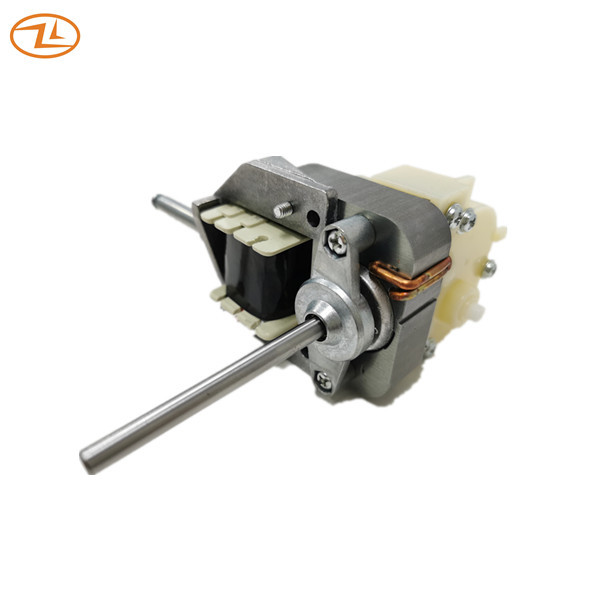

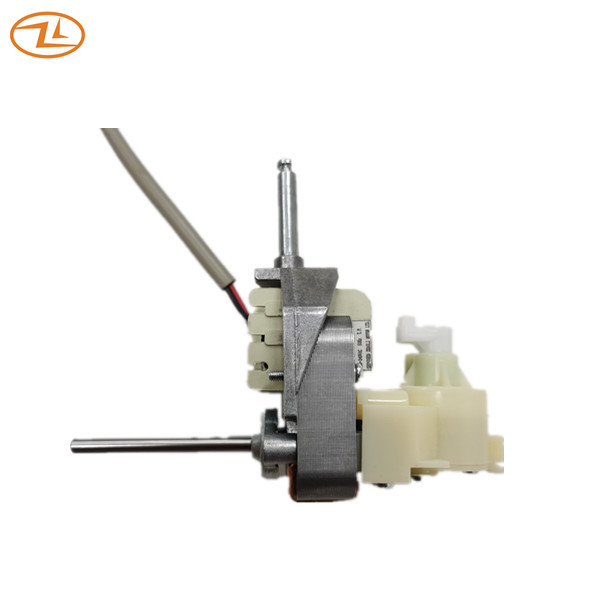

Shaded Pole Motor With Gearbox For Oscilating Stand Fan 220V 60HZ
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
Specification:
| Rated voltage/frequency V/HZ | 220V 60HZ | |
| Voltage fluctuation | ±5% of rated voltage | |
| End play | 0.2-0.8mm | |
| High speed | Rated current | 0.165±20%A |
| Rated power | 21.5±20%W | |
| Rated speed | 2350±200RPM | |
| Low speed | Starting voltage | <= 176V |
| Rated current | 0.135±20%A | |
| Rated power | 17.5±20%W | |
| Rated speed | 2150±200RPM | |
| Rising Temp. | IEC60335-1 <85K | |
| Lock Temp. | IEC60335-1 | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
Drawing:
Application: Stand fan, Oscilating fan
