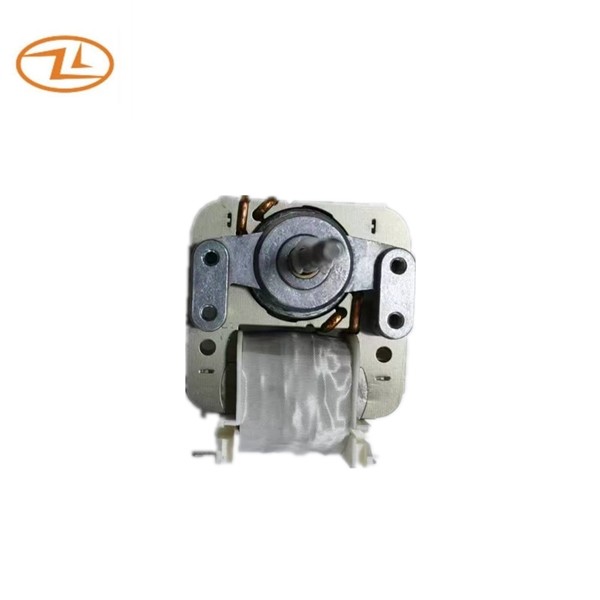

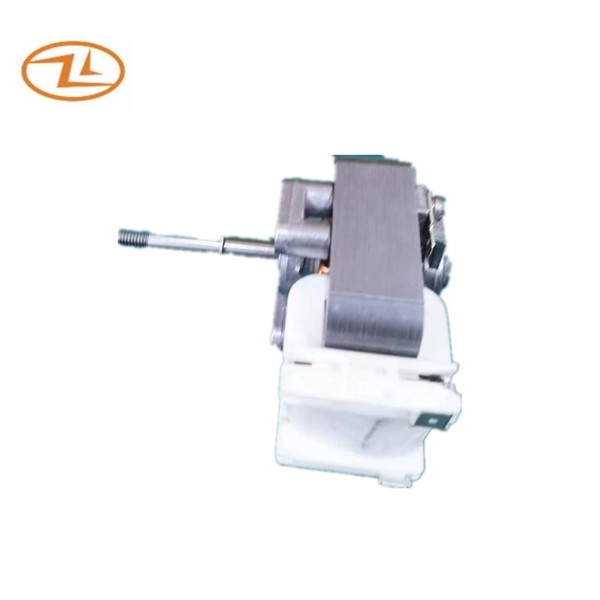

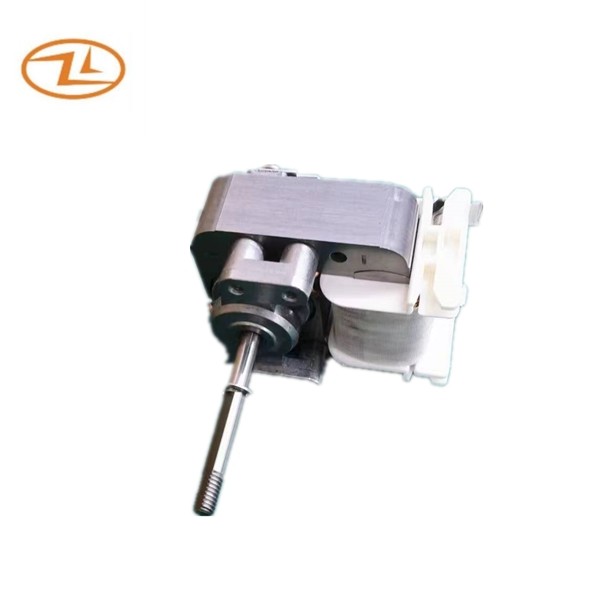

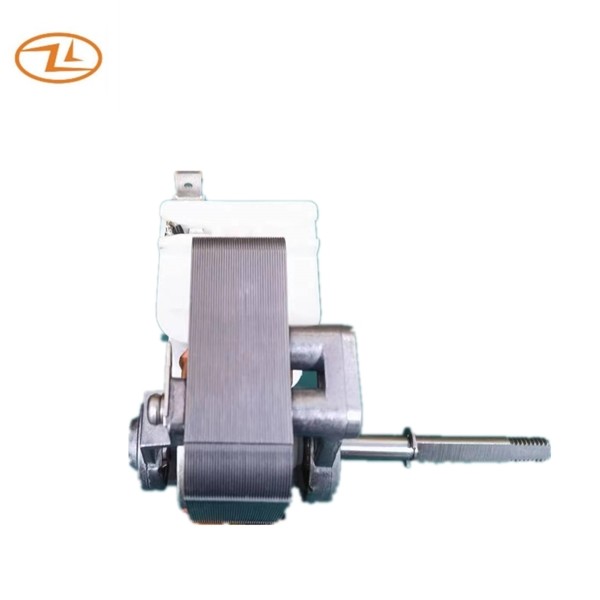

127V 60HZ Electric Shaded Pole Motor Single Phase Asynchronous
Shaded Pole Electric Motor Air Fryer Oven motor YJ61-200 127V 60HZ custom printed
The cowl pole motor is the original type of AC single-phase induction motor, dating back to at least as early as 1890. The cowl pole motor is a mouse cage type motor in which the auxiliary windings consist of a copper ring or rod around a portion of each pole. When single-phase AC power is applied to the stator windings, a rotating magnetic field is generated by providing a shield for the magnetic poles. This auxiliary single-turn winding is called shading coil. The current induced by a magnetic field in the coil creates a second electrical phase by delaying the phase. The flux variation in the pole (the shadow pole) is sufficient to provide a two-phase rotating magnetic field. The direction of rotation is from the unshaded side of the bar to the shaded (ring) side.
Characteristics:
Low noise, Considerable energy saving effect, Long life, Good quality and cheap price, Less maintenance,Low defect rate,Simple structure.
Application:
Ovens, Microwave ovens, Air-conditioners,Humidifiers, Air-fresheners, Refrigerators, Washing machines, Fan heaters, Ventilators,
Water-pumps.
Specification:
| Model |
Rated Voltage/ Frequency V/HZ
|
On Load (fan blade) | ||||
| Start-up voltage V |
Current A
|
Input power W
|
Speed RPM
|
|||
| YJ61/200 | 127 | 60 | <85 | ≤0.5 | ≤40 | 2300±200 |
Drawing:
