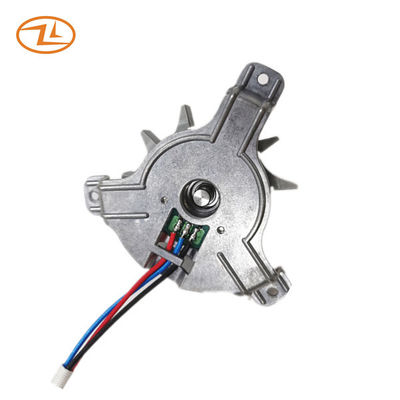

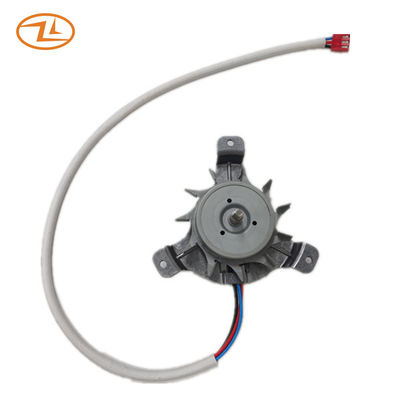

PWM Control 24V BLDC Fan Motor three phase For Turbo Oven Driver

PWM Control 24V BLDC Fan Motor three phase For Turbo Oven Driver
Features Gallery Product Description Request A Quote
Name: BLDC Fan Motor
Rated Voltage: 24VDC
Stack Size: φ42mm
Bearing: Ball Bearings
Number Of Stator Slots: Six
Number Of Magnet Poles: Four
Construction: Outer Rotor
Number Of Phases: Three Phase
Rectifying Method: Electronices
Control Type: PWM
Output Signal: FG
Packing: Customized Packing
Printing: Customized Printing
Application: Oven/microwave Oven
High Light:

PWM Control BLDC Fan Motor


Three Phase BLDC Fan Motor


24V BLDC Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: D6T42H2B01
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per day
Product Description

BLDC Fan Motor 12/24VDC For Turbo Oven Driver And Controller As One Set PWM Control


This is one application of brushless DC motor.

Brushless DC motor uses electronic communtation instead of mechanical steering. Compared with Brush DC motor, it has long working life and eliminates mechanical steering's noise, sparks and electromagnetic interference and so on. It is of great convenience and reasoning to control motor's performance.

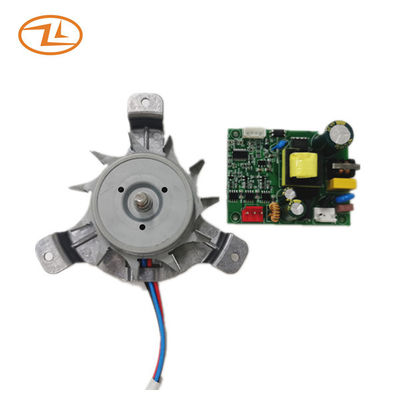

  • Motor driver and controller

The motor drive is DC chord vector control, and its characteristics are shown in the following table:

Input voltage 100-255VAC
Input power 20W
Output voltage 12VDC
Output power 18W max
Control method PWM input
Position detection method FOC
PWM signal

PWM frequency range: 15-28KHz

Duty cycle range: 1%~99%

L level: 0-1.0V; H level: 2-5.5V

FG signal PWM Control 24V BLDC Fan Motor three phase For Turbo Oven Driver 0
Soft start function After the controller is powered on, the motor is slowly accelerated to the required value after starting.
Locked rotor protection When the load brought by the motor encounters great resistance from the outside to stop the motor, the controller temporarily stops the motor. After a few seconds, the motor tries to start. If the resistance is absent, the motor runs normally. If the resistance is still present, the motor stops temporarily again. After several cycles, the motor stops. Manually remove the resistance, and press again to start the motor.
Open phase protection

When one or two of the three phases of the motor are not energized, the motor stops running.

Over current protection If the motor current suddenly increases beyond the set value due to external factors, the motor will stop running.
  • Motor electric characteristics
Rated voltage 24VDC
Rated speed(free load) 1800+/- 10% RPM
Rated current(free load) 4.0W max
Rated load 69.5mN.m
Rated speed(on load) 1800+/- 10% RPM
Rated current(on load) 16W max
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K




PWM Control 24V BLDC Fan Motor three phase For Turbo Oven Driver 1



Application: smart home appliances, like oven, mircowave oven.

PWM Control 24V BLDC Fan Motor three phase For Turbo Oven Driver 2
