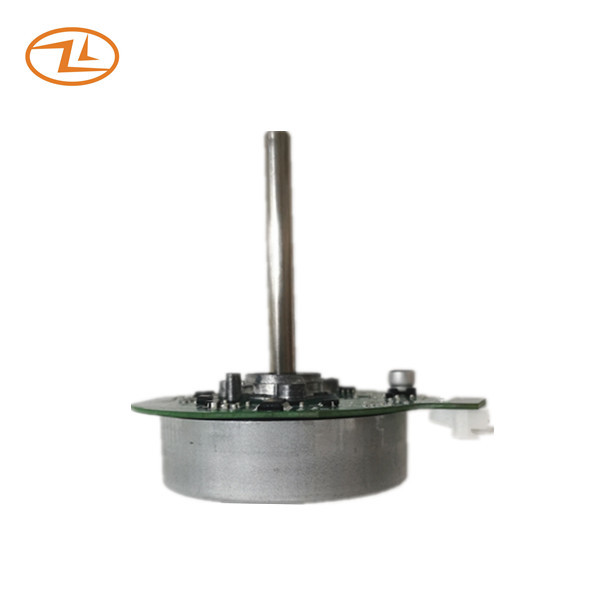

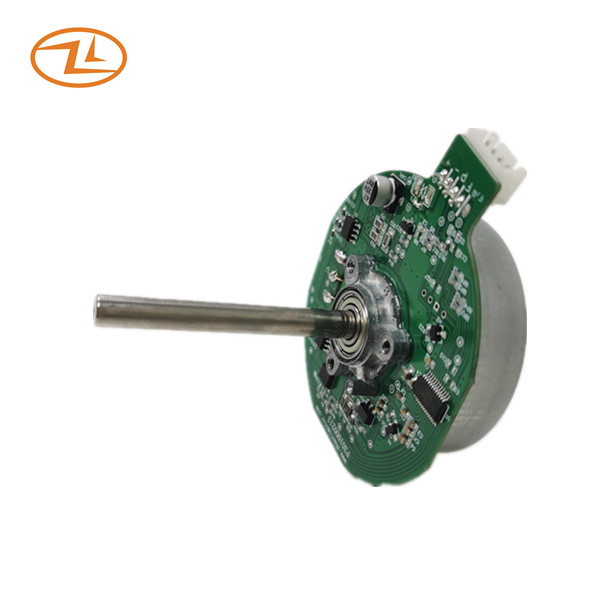

24VDC Brushless DC Motor For Desk Fan, Circulator Fan Stand Fan Customized Specification
Brushless DC Motor is a type of energy-saved motor. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
The motor shaft is flexible to be customized.
| Rated voltage | 24VDC |
| Operating voltage | 15~26.4VDC |
| Rated load | 33mN.m |
| Rated speed(on load) | 3400+/- 10% RPM |
| Rated current(on load) | 0.5A max |
| Rotation direction | CW(view from shaft side) |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <65K |
| Speed control |
PWM PWM frequency: 21KHZ ~ 28KHZ (typical value 25KHZ) PWM amplitude: 3.3~5.0V (Min >2.6V, Max <5.5V) Duty cycle: 0%, motor stops; 100%, full speed. |
| Detecting method of motor speed | FG signal |
Drawing:
Typical Application: Desk Fan, Circulator fan, Stand fan, Oscilating fan, Table fan
