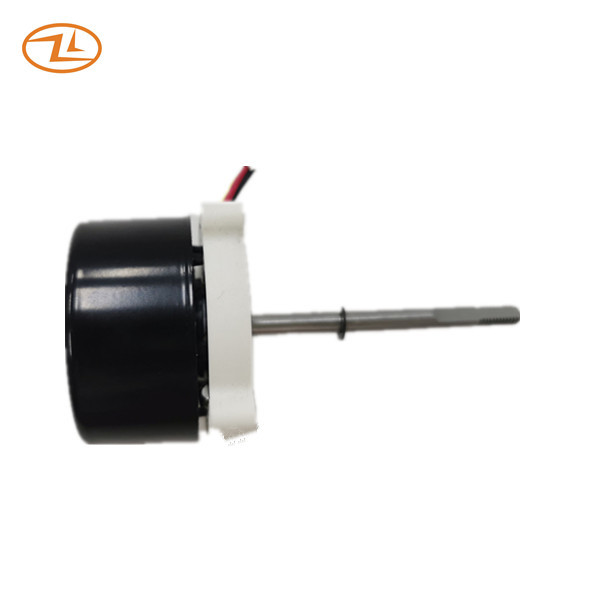

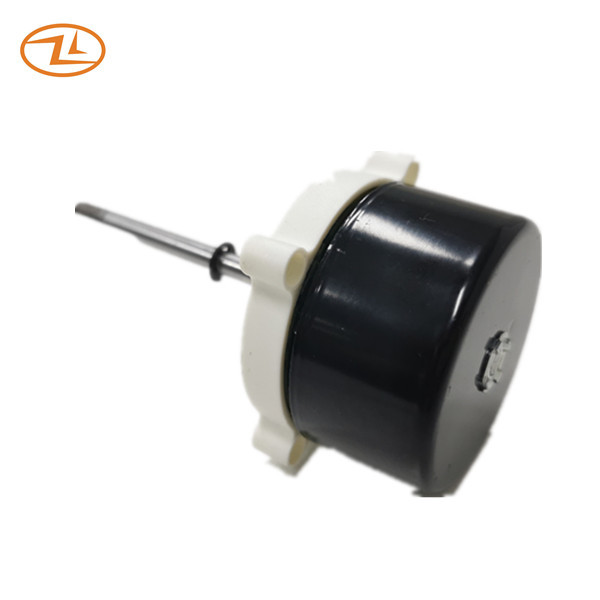

BLDC Fan Motor Three Phase DC Motor 24VDC Table Fan Circulator Fan Use
Brushless DC motor can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Operating condition | 0℃~40℃, RH 5%~95% |
| Storage condition | -20℃~60℃, RH 5%~95% |
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Rated load | 75mN.m |
| Rated speed(on load) | 1800+/- 10% RPM |
| Rated current(on load) | 0.20A max |
| Rotation direction | CW(view from shaft side) |
| Working duty | continuous |
| Position detection method | FOC |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <65K |
| Speed control |
PWM PWM frequency: 15KHZ ~ 20KHZ Duty cycle: 1%~99% L level: 0~1.0V; H level: 2~5.5V; |
| Detecting method of motor speed |
FG signal L level: 0~0.5V; H level: 4.5~5.5V; Max input/output current :5mA |
Drawing:
Typical Application: Bathroom exhaust fan, Bathroom ventilating fan, Circulator Fan
