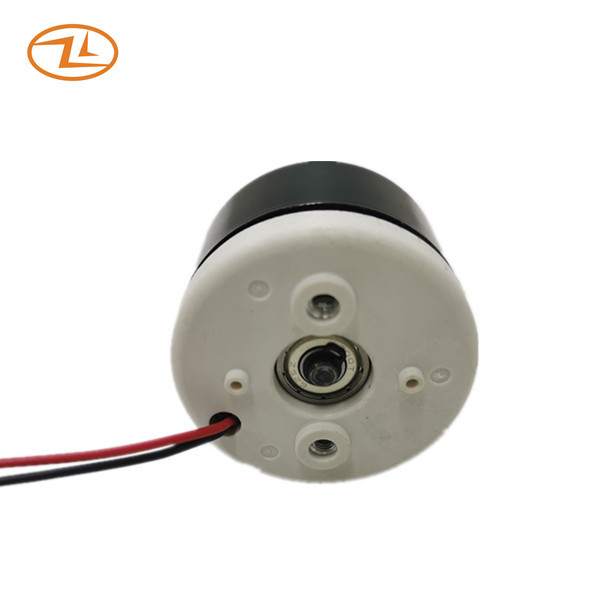

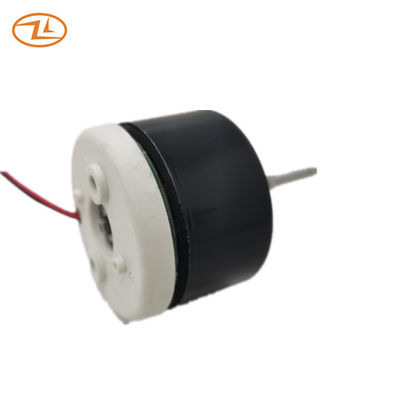

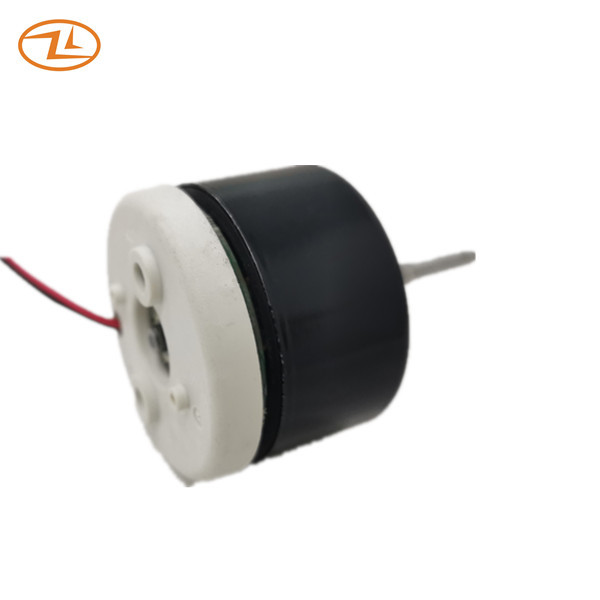

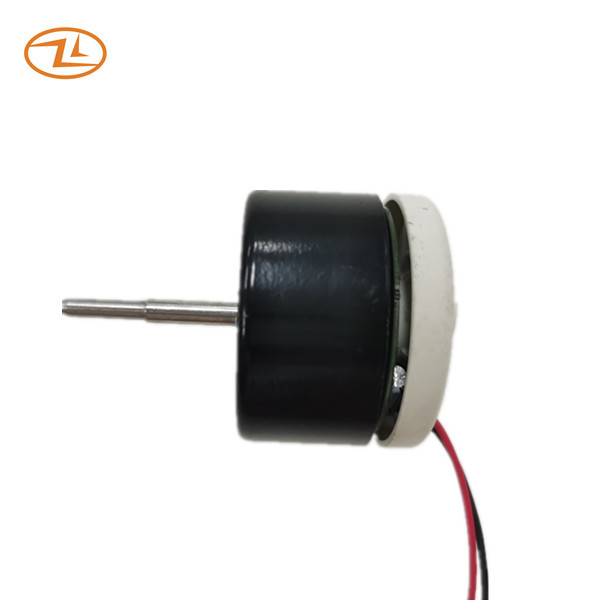

High Efficiency Brushless DC Motor For Bathroom Fan Exhaust Fan 12/24VDC PWM Control
Brushless DC motor uses electronic communtation instead of mechanical steering. Compared with Brush DC motor, it has long working life and eliminates mechanical steering's noise, sparks and electromagnetic interference and so on. It is of great convenience and reasoning to control motor's performance. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
Brushless Direct Current Motor is a type of energy-saved motor.
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Rated speed(free load) | 3350+/- 15% RPM |
| Rated current(free load) | 0.12A max |
| Rated load | 33mN.m |
| Rated speed(on load) | 2200+/- 10% RPM |
| Rated current(on load) | 0.4A max |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <70K |
Drawing:
Typical Application: Bathroom exhaust fan, Bathroom ventilating fan
