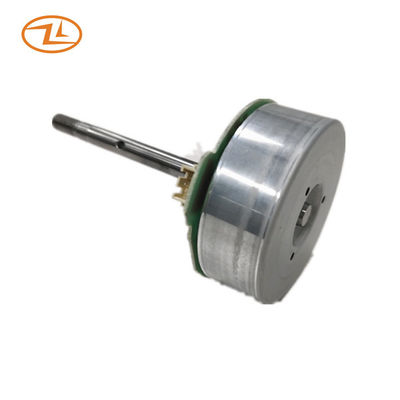

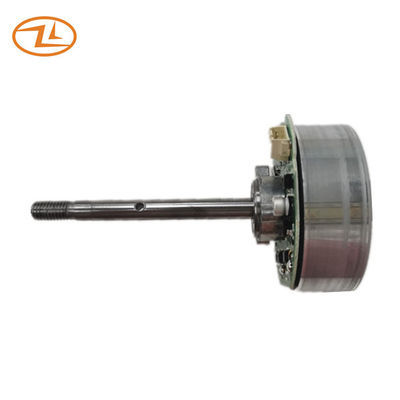

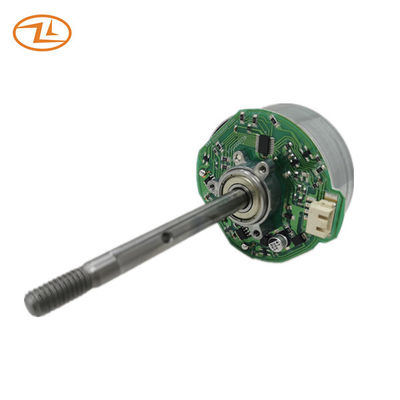

24VDC BLDC Fan Motor Brushless DC Motor For Oscilating Stand Fan PWM Control
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Operating condition | 0℃~40℃, RH 5%~95% |
| Storage condition | -20℃~60℃, RH 5%~95% |
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Rated speed(free load) | 3200+/- 10% RPM |
| Rated current(free load) | 0.30A max |
| Rated load | 230mN.m 8inch fan |
| Rated speed(on load) | 1350+/- 10% RPM |
| Rated current(on load) | 1.4A max |
| Rotation direction | CW(view from shaft side) |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <65K |
| Speed control | PWM |
| Detecting method of motor speed | FG signal |
Motor on load speed
|
Gears f = 25KHz |
1 | 2 | 3 | 4 | 5 | 6 |
| Speed(RPM) | 360±30 | 620±30 | 830±30 | 1040±30 | 1240±30 | 1350±30 |
| Power (W) | 2.56 | 4.69 | 7.78 | 13.83 | 23.25 | 32.5 |
|
Temperature and humidity test (without condensation) |
Motor must be left at the temperature range of -20°C to 60°C and the relative humidity range of 5% to 90% for 72 H. and then returns to room temperature 12 hours. Measurement of the rated load speed and rated load current must be conformed to standard. |
| Vibration test (without packing) |
No error should occur after test . Direction of vibration: front and rear, right and left, up and down. Vibration acceleration: 9.8m/s²(sine eave) vibration Frequency range: 50Hz~50Hz~50Hz Repeating period: 1Min Vivrating Time:30cycle(30min) each direction. |
| Vibration test (packing) |
No error should occur after test at the mimimum package test condition. Direction of vibration: front and rear, right and left, up and down. Vibration acceleration:9.8m/s²(sine eave) vibration Frequency range: 50Hz~50Hz~50Hz Repeating period: 1Min Vivrating Time:30cycle(30min) each direction. |
| Shock test(packaging) |
No error should occur after test at the minimum package. Drop height: 50CM Impact shock is applied 1 time for bottom surface. |
Drawing:
Application: Stand fan, Oscilating fan
