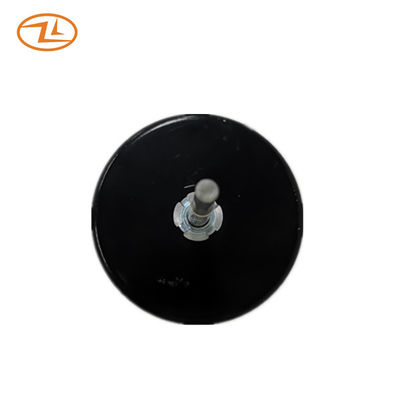

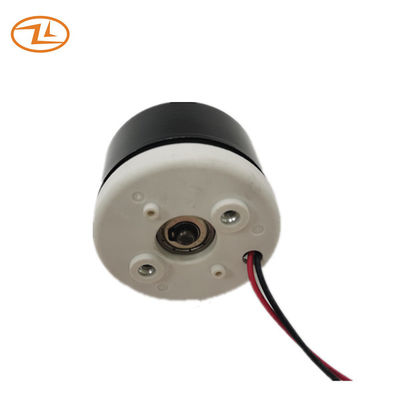

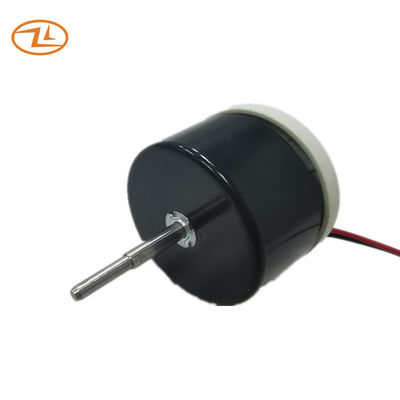

24V BLDC Motor For Bathroom Exhaust Fan Bath Heater Low Noise Brushless DC Motor
| Rated voltage | 24VDC |
| Operating voltage | 21.6~26.4VDC |
| Rotation direction | CCW |
| Working duty | continuous |
| Operating condition | 0℃~40℃, RH 5%~90% |
| Storage condition | -20℃~60℃, RH 5%~90% |
| Rated voltage | 24VDC |
| Rated speed(free load) | 3350+/- 15% RPM |
| Rated current(free load) | 0.12A max |
| Rated load | 33mN.m |
| Rated speed(on load) | 2200+/- 10% RPM |
| Rated current(on load) | 0.4A max |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <70K |
Drawing:
Typical Application: Bathroom exhaust fan, Bathroom ventilating fan
