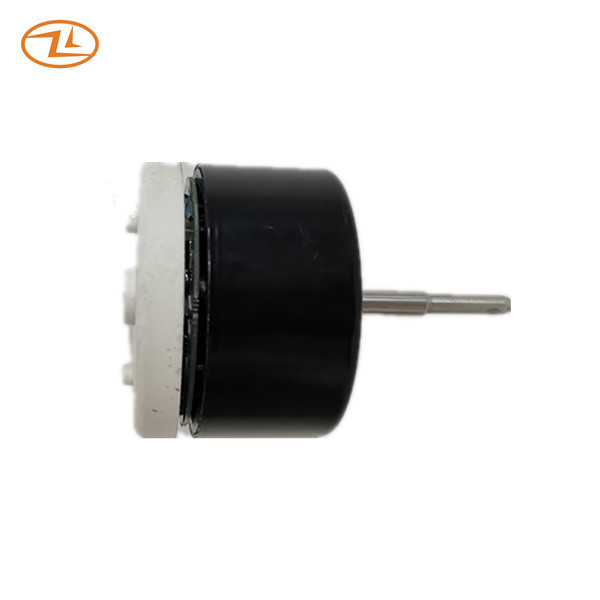

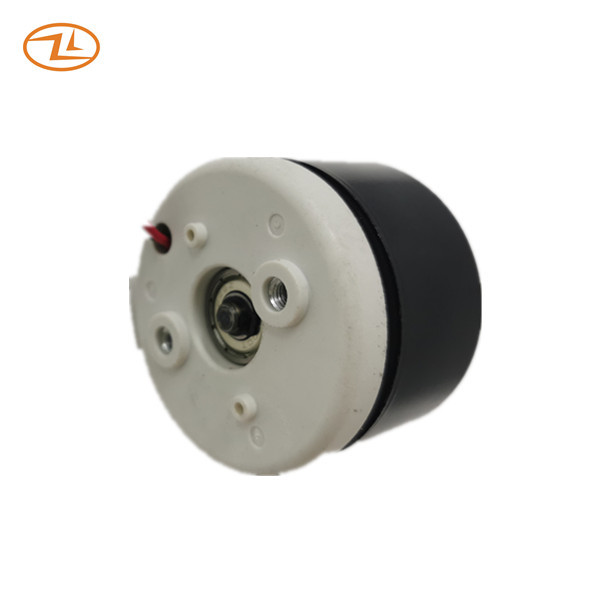

Low Noise High Efficiency Brushless DC Motor For Exhaust Fan PWM Control FG Signal
Brushless DC Motor is a type of energy-saved motor. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
The motor shaft is flexible to be customized.
| Rated voltage | 12VDC |
| Operating voltage | 10.6~13.6VDC |
| Rated speed(free load) | 3350+/- 15% RPM |
| Rated current(free load) | 0.20A max |
| Rated load | 33mN.m |
| Rated speed(on load) | 2200+/- 10% RPM |
| Rated current(on load) | 0.75A max |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <70K |
Drawing:
Typical Application: Bathroom exhaust fan, Bathroom ventilating fan
