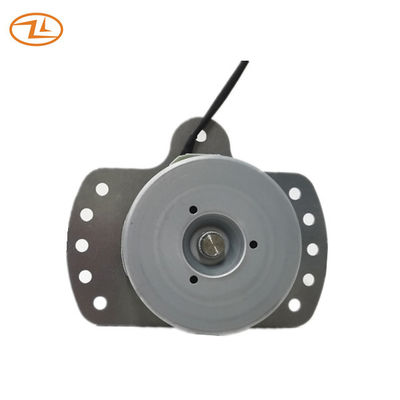

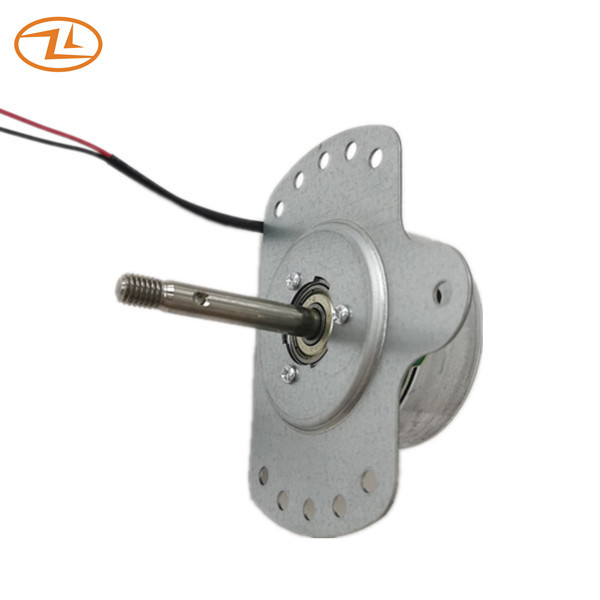

Low Noise High Efficiency BLDC Motor For Circulator Fan Bathroom Exhaust Fan
Brushless DC Motor is a type of energy-saved motor. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.
The motor shaft is flexible to be customized.
| Rated voltage | 24VDC |
| Operating voltage | 15~26.4VDC |
| Rated speed(free load) | 2800+/- 10% RPM |
| Rated current(free load) | 0.25A max |
| Rated load | 93mN.m 8inch fan |
| Rated speed(on load) | 1550+/- 10% RPM |
| Rated current(on load) | 0.88A max |
| Rotation direction | CCW(view from shaft side) |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <55K |
| Speed control | PWM |
| Detecting method of motor speed | FG signal |
| Operating condition | 0℃~40℃, RH 5%~95% |
| Storage condition | -20℃~60℃, RH 5%~95% |
| Locked-rotor protection | When the motor rotor and output shaft are locked, the motor lock protection function starts to work, the motor output is closed, and the motor output current is returned to Zero, the motor stops working. |
| Current limit function | When the current in the motor circuit exceeds 3.0 A, the motor will be protected and stopped. |
Drawing:
Application: Bathroom exhaust fan, Circulator fan, Desk Fan, Stand fan, Oscilating fan, Table fan
