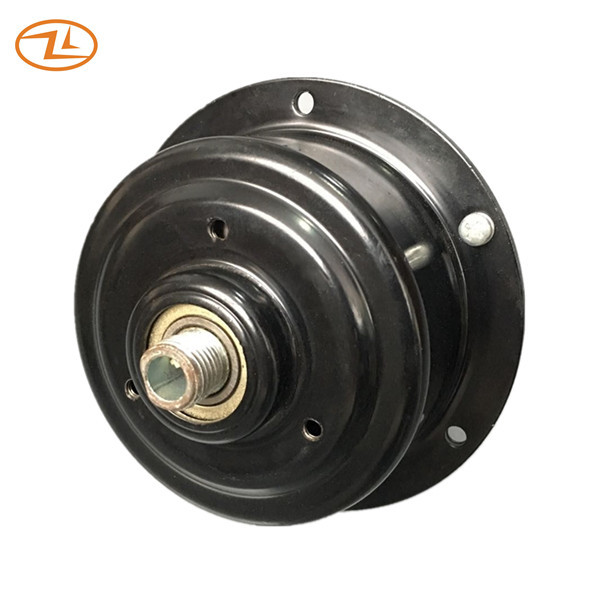

46 inch Ceiling Fan Motors BLDC 33W Three Phase With Remote Control

1000
MOQ
46 inch Ceiling Fan Motors BLDC 33W Three Phase With Remote Control
Features Gallery Product Description Request A Quote
Features
Specifications
Name: BLDC Ceiling Fan Motor
Rated Voltage: 24VDC
Stack Size: φ92mm
Number Of Poles: Eight Poles
Number Of Phases: Three Phase
Bearing: Ball Bearings
Construction: Outer Rotor
Control Type: PWM
Output Signal: FG
Rectifying Method: Electronices
Packing: Customized Packing
Printing: Customized Printing
Anicilary: Emitter And Signal Receiver
Application: Ceiling Fan
High Light:

46 Inch Ceiling Fan Motors

,

33W Ceiling Fan Motors

,

Three Phase Ceiling Fan DC Motor
Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: CE, ROHS, REACH
Model Number: E9T72H4BA6
Payment & Shipping Terms
Packaging Details: cartons + pallets
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1,000pcs per day
Product Description

BLDC Ceiling Fan Motor For 42inch Or 46inch Ceiling Fan 24VDC With Remote Control



  • Motor characteristics
Rated voltage 24VDC
Rated speed(on load) 260+/-5 RPM
Rated current(on load) 1.37A max
Rated power(on load) 33W max
Working duty S1
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Speed control PWM
Detecting method of motor speed FG signal



  • Motor controller (signal receiver)
Color black
Power Motor 33W max; Light 40W max
Character Vector sine wave control
Function
  • Through RF(433MHZ) to receive the transmitter signal and control accordingly.
  • Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction
  • Light switch
Protection Function
  • Soft start: When the controller is powered on, the motor will speed up slowly to the required data.
  • Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 30VDC, or less than 7VDC, the controller will turn off the current, the motor would re-work once the input voltage meets the requirement.
  • Lock protection: When the motor suddenly stops due to the external resistance, the controller will turn off the motor current, and try to restart after a few seconds. If there is no resistance, the motor runs normally; if resistance do not disappear, motor will stop running temporarily and after a few cycles, the power would be cut off completely by the controller.
  • Over-current protection: Due to external causes, if the motor current increases which exceeds set value, the controller will turn off the motor.
  • Constant power protection:The maximum load power of the motor is not affected by the voltage value in the operating voltage range.When the load of the motor changes, the power of the motor remains unchanged.
  • Open-phase protection: If there is no power supply to one of the phases, the motor will be stopped running by the controller.



Drawing:

46 inch Ceiling Fan Motors BLDC 33W Three Phase With Remote Control 0

Application: Ceiling fan
