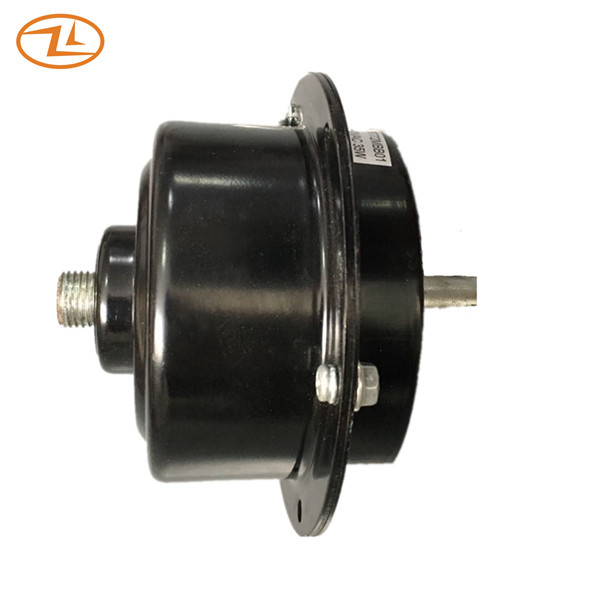

Ceiling Fan Motor Brushless DC Motor 24VDC Long Life Ball Bearings PWM Control
| Rated voltage | 24VDC |
| Operating voltage | 19.2~28.8VDC |
| Operating condition | -10℃~40℃, RH 15%~90% |
| Storage condition | -20℃~60℃, RH 5%~95% |
| Rated voltage | 24VDC |
| Rated speed(on load) | 260+/-5 RPM |
| Rated current(on load) | 1.37A max |
| Rated power(on load) | 33W max |
| Working duty | S1 |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Speed control | PWM |
| Detecting method of motor speed | FG signal |
Drawing:
Application: Ceiling fan
